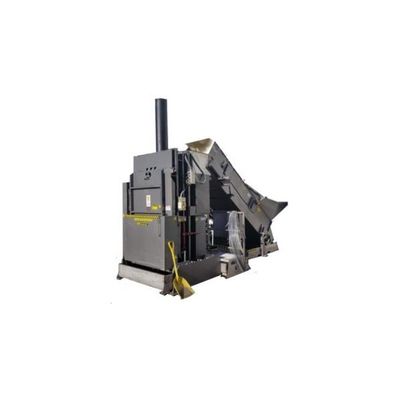

Harmony ExtractPack - Model Pro -Intermediate Liquid Extraction Baler

• Bale Size: 42"x 30"x Up To 48"
• Bale Wt Alum: 600 lbs.
• Bale Wt PET: 550 lbs.
• Liquid Reservoir: 254.5 Gallons

This amazingly efficient baler perforates, drains, and creates mill-sized bales of aluminum, PET, and TetraPak containers of multiple sizes.  The baler can be ground fed or conveyor fed, and can be set to cycle automatically for large volumes of product.

The ExtractPack Pro is manufactured with 90% of all structural parts being made of the highest quality stainless steel.  The remaining 10% of steel parts are coated with durable "steelit gray" paint to resist corrosion and wear.

With its vertical orientation, this innovative intermediate liquid extraction baler provides the same high volume efficiency with a reduced operational space requirement. The large 254.5 gallon stainless steel liquid reservoir is conveniently located under the the conveyor and behind the machine to maximize space.

All safety switches, ultrasonic sensors, fittings, conduit, and proximity switches are water proof.  The ExtractPack Pro is custom designed with stainless steel splash guards, safety covers, and a power unit weather cover that allow for liquid run off and use in the harshest of environments.

The product press release of the ExtractPack Pro was featured as a Product Press Release and a Product Spotlight in the online publication of Recycling Today in the United States, and featured as a way to combine baling speed and size in the Can Maker in the UK.

Our experienced sales staff is ready to help you with a free quote or no-obligation site review today.  We are here to answer any questions you might have and to make sure you get the right liquid extraction baler for your operations.

If your business needs a durable intermediate liquid extraction baler that is cost-effective, saves space, but that also provides high efficiency and longevity, the ExtractPack Pro is the baler for you!  See our full line of ExtractPack Liquid Extraction Balers and Contact Us for more information today!

• Stainless Steel Construction
• Creates Mill-Sized Bales Of Aluminum, PET, & TetraPak
• Large 254.5 Gallon Stainless Steel Liquid Reservoir
• Vertical Space Saving Design
• Automatic Cycle Functionality
• Fast 38.5 Second Cycle Time (When Empty)
• Water Proof Switches, Sensors, & Fittings
• Allen Bradley PLC
• All Electrical Enclosures Are Stainless Steel NEMA 4 Rated

Specifications

• Platen Extend Force: 196,350 (lbf)
• Platen Retract Force: 125,644 (lbf)
• Cycle Time: 38.5 SECONDS
• Extend Time: 23.5 SECONDS
• Retract Time: 15 SECONDS
• Motor: 20 HP
• 2Pump: Variable Speed Displacement Piston Pump
• Oil Reservoir: 94 Gallon Stainless Steel
• Electrical Power: 208/230/460 V – 3 Phase
• Bale Eject: Hydraulic With Chains

Dimensions

• Baler Dimensions: 77.83″W X 63.29″D X 156.64″H
• Conveyor Dimensions: 36″ x 12′ Stainless Steel
• Loading Door Height: 59.25″ (1505.1 mm)
• Overall Depth (With Conveyor Door Open): 285.39″ (7249 mm)
• Overall Width (With Door Open): 81.34″ (206.6 cm)
• Conveyor Belt Dimensions: 36″ x 26′ – 8″ PVC W/3″ CLEATS
• Catwalk Dimensions: 23.63″ x 63.75″ W/42″ RAIL
• Liquid Reservoir Dimensions: 66.5″W x 132″L x 11″H
• Liquid Reservoir Volume: 245.5 GALLONS
• Maximum Recommended Tote Size: 21.75″W x 33.75″L x 24″D
• Actual Weight: 15,669 LBS.
• Required Operating Area: 81.34″ x 286.4″ x 161.8 SQ FT.
• Bale Size: 42″W x 30″D x UP TO 48″H
• Bale Weight Aluminum: 600 LBS.
• Bale Weight PET: 550 LBS.

• 36″ x 12′ Conveyor

• Medium Sized Bottlers, Brewers, Contract Packagers, Distribution Centers
