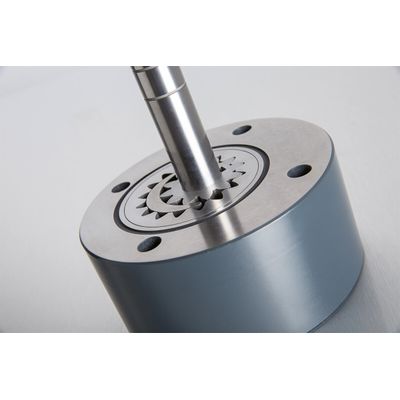

BeinlichModel ZPI Series -Internal Gear Pumps

SHARE

Thanks to internal gear wheels, the gear pump ZPI allows an especially low-noise conveying of the fluid which not only reduces the noise emission but also the costs for noise-absorbing measures. Furthermore, the high volumetric efficiency of the ZPI internal gear pump has a positive effect on the energy balance due to the improvement of the overall efficiency.

Most popular related searches
Performance data
  • Displacements 1.00 up to 207.00 cc/rev
  • Speed 300 up to 3,000 rpm
  • Viscosity 10 up to 1,000 mPas
  • Ambient temperature range -30°C up to +60°C
  • Medium temperature / operating temperature -20°C up to +150°C
  • Operating pressure up to 120 bar
Application areas
  • Low noise hydraulic drives
  • Coolant pumps for machine tools
  • „Overdrive pumps“ for hydraulic presses in combination with Beinlich radial piston pumps

  • Low pulsation
  • Low noise operation
  • Long service life
  • High volumetric efficiency
