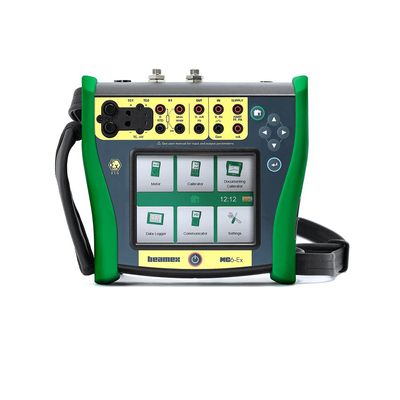

Gometrics Beamex - Model MC6-Ex -Intrinsically Safe Communicator and Gauge
The Beamex MC6-Ex is an advanced calibrator and communicator, highly accurate with exceptional functionality. It is a multifunction calibrator-documenter and communicator, which offers the capability to calibrate pressure, temperature and electrical signal measuring instruments. It also contains a field communicator for HART, Foundation Fieldbus and Profibus PA instruments.
MC6-Ex is an IEC and ATEX certified calibrator and can be used in any Ex zone / Ex division, even in the most demanding zones (Zone 0 / Division 1). The certification classification is Ex II 1 G and Ex ia IIC T4 Ga.
Its rugged, dust- and water-resistant IP65 rated housing, along with its ergonomic design and ease of use make the MC6-Ex an ideal device for field use.
The MC6-Ex communicates with the Beamex calibration management software, which allows fully automated calibration and documentation without the use of paper. MC6-Ex can also be part of the paperless integration with the customer’s ERP system.
- Versatile and easy to handle
- It is a multifunction calibrator-documenter and communicator
- Contains a field communicator for HART, Foundation Fieldbus and Profibus PA instruments
- Calibration of pressure, temperature and electrical signal measuring instruments
- Sectors of activity: Oil platforms, Oil refineries, drilling rigs and process plants, Pipelines and distribution centers, Chemical and petrochemical plants, Power plants
- Can be used in any zone/division Ex
- Multilingual user interface
- Robust IP65 rated, dust and waterproof housing
- Screen : Screen of 5.7 inches in backlit and tactile color
- Power supply : Internal power supply for powering a loop/instrument
- Measuring modules : Up to three internal pressure measuring modules and connection for external modules
- Battery : Intelligent replaceable battery
- Communicator : Integrated field communicator
- Capacities : Ability to document calibrations and a data record
- Communication : Communication with pressure controllers and dry temperature blocks in a safe area
- Pressure measurement : Internal/external pressure modules
- Voltage measurement : ± 500 mV y ± 30 VDC
- Current measurement : ± 100 mA (internal or external supply)
- Frequency measurement : 0 … 50 kHz
- Pulse count : 0 … 10 Mpulse
- Voltage generation : ± 500 mV y -1.5 … 10.5 VDC
- Power generation : 0 … 25 mA (assets / liabilities, i. e. internal or external supply)
- Resistance measurement : Two simultaneous channels (0 … 4 kΩ)
- RTD Measurement : Two simultaneous channels
- TC measurement : Two simultaneous channels (universal connector / mini-plug)
- Simulations : RTD simulation, TC simulation, resistance simulation (0… 4 k?)
- Frequency generation : 0 … 3 kHz
- Click Queue Generation : 0 … 10 Mpulse
- Warranty : 1 año
