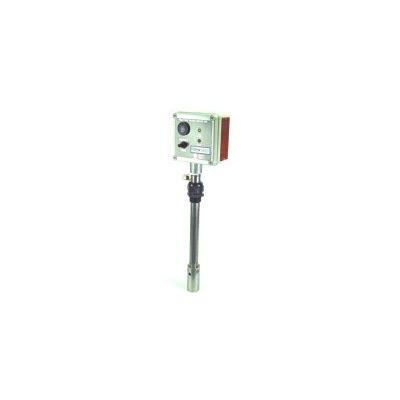

Gizmo Engineering - Intrinsically Safe Liquid Level Alarm

EASY TO INSTALL liquid level alarm. is Uninterruptible battery power ensures there are no cords to come unplugged, or breakers to trip, and it works through power faiures. Always on duty monitoring level 24/7. Further discussion.

Durable stainless steel construction. Every unit inludes a SS grounding lug. For especially abusive environments there is an optional guard for the float that screws on to protect it from physical damage.

Easy to install by connecting a single wire internally, and then just mount it on you tank or drum. The depth is adjusted by loosening the nut on the cord grip so the shaft can be slid to the desired length. No tools needed.

Weatherproof - all NEMA 4X construction. Pipe is sealed in cord grip with a rubber gland.

Depth adjustment is easy: just loosen the cord grip nut and slide the pipe to the proper depth. The 1" NPT cord grip works with many adapters for any mounting situation. (2" NPT, flange, bulkhead feedthrough, tank wall etc. Float switch is reversible.

Operation Red alarm light will flash during use for notification to the user. Low battery light indicates when battery needs replacing. Shelf life of the lithium battery is 10 years.

Stainless Steel Options

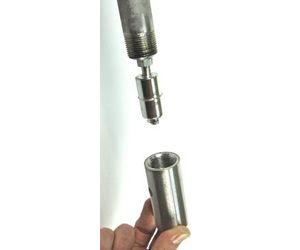

All wetted parts are type 304 stainless steel. The standard model has a 304 stainless steel float which is 24 mm in diameter. A "screw-on guard" is an available option which allows the alarm to be moved from tank to tank without worry. The float is reversible.

Cold Weather suitable - All components are rated for -40 deg. C operation

Models for Drums the 3/4" NPT opening in drums requires a very small-diameter float switch and pipe. The model DHK-IS is designed for this application. Please call to discuss this application.
