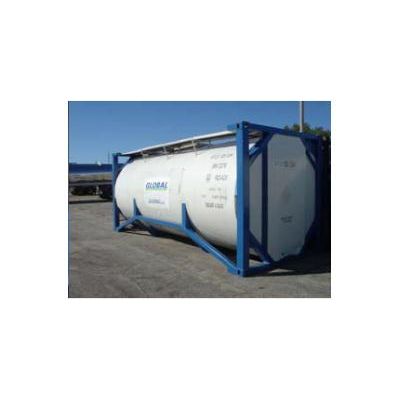

ISO Container Tank

Capacity: 17,500 – 26,000 liters / 5,300 – 6,600 gallons Type: IMO-1, IM-101, DOT 407-412 Hazardous materials tank Tare Weights: Up to 7,400 lbs / 3,000 – 3,350 kg Construction: 316 Stainless steel barrel Thickness: Barrell @4.5MM, teak heads @5.5MM Insulation Urethane foam 2” , Rock Wool 2” Working Pressure: 3 bar- 43.5 psi 4 bar-58 psi Maximum Loading Temp 240o F – 300o F Dimensions: Outer - 20’ x 8’ x 8’-6” Interior 18’-10” x 7’-8” x 7’-9” Other: Bottom outlet equipped with 3” male Kamloc Tanks meet DOT, FRA, AAR, and CTS specifications
