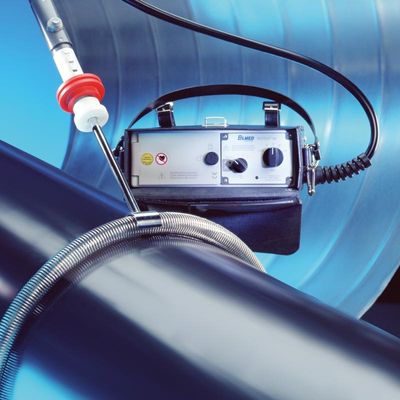

ISOTEST - Model 4S -Holiday Detector
The ISOTEST 4S Holiday Detector is engineered for rigorous on-site applications, leveraging impulse voltage technology to deliver highly precise testing with automated regulation. The device features an adjustable test voltage range of 10-25 kV in 0.5 kV increments, unipolar high voltage pulses, and a pulse duration of 10 μs at a frequency of 25 Hz. Equipped with a graduated switch and status LED for operation and indication, it produces acoustic signals up to 86 dB. It includes a lead-acid rechargeable battery (6 V / 4.5 Ah) with a runtime of up to 9 hours. The device measures 280 x 230 x 120 mm and weighs 4.5 kg with accessories, while the battery alone weighs 0.9 kg. It comes with a 1.5 m high voltage cable and provides an IP42 protection rating, operating in temperatures from 0°C to 50°C, and can be stored between -20°C and 50°C. Its robust construction ensures dependable performance in challenging environments, aiming to provide reliable test results across various industrial settings.- test voltage 10 - 25 kV, 5 kV steps
- robust testing device for construction site operation
- multi-stage sensitivity adjustment
- patented automatic regulation
- power reserves for the highest requirements
- self-calibrating instrument
- testing of dirty, damp and therefore slightly conductive surfaces
- three grounding possibilities, including capacitive grounding (Phantom-Grounding)
- no static charge of the text object
- rapid battery change
- low material stress thanks to short test pulses
- safe grounding by automatic monitoring of the earth plug
- emergency-off safety mode (optional)
Reserves of energy for the most demanding requirements by means of impulse voltage technology. The patented automatic regulation guarantees a precise test voltage. Its robust, hardwearing technology makes the ISOTEST® 4S suitable for the rough and tumble of everyday testing. Its ease of operation guarantees reliable test results in any situation on the construction site.
Functions
- test voltage 10 - 25 kV, adjustable in steps of 5 kV
- multi-stage sensitivity adjustment
- acoustic and visual indication of porosity
- emergency-off safety mode (optional)
Test voltage
10 - 25 kV, adjustable in steps of 0.5 kV
Voltage form
unipolar high voltage pulses
Pulse duration
10 μs
Pulse repetition frequency
25 Hz
Operation and indication via
graduated switch and status LED
Acoustic signals
up to 86 dB
Power Supply
lead acid rechargeable battery 6 V / 4.5 Ah,
battery life up to 9 hours
Dimensions (incl. instrument bag)
280 x 230 x 120 (mm)
Weight (incl. handle and instrument bag)
4.5 kg
Weight of rechargeable battery
0.9 kg
Length of high voltage cable to handle
1.5 m
Type of protection
IP42
Operating temperature
0 °C … +50 °C
Storage temperature
-20 °C … +50 °C
Revisions in the course of technical progress reserved.
