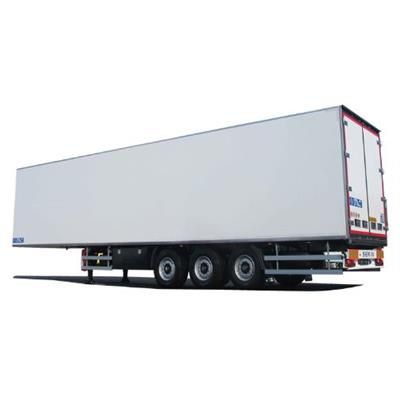

Isothermal Cooling Box
Axles: Drum or disc type axle with 3*9000 kg carrying capacity (SERIN, BPW or SAF Brand). Chassis: High strength I profile steel SERIN brand chassis fabricated with automatic welding techniques and that complies with 98/91 EEC Standards. Brakes: Equipped with braking system that has automatic load adjusting valve (cornering safety system) and that complies with 71/ 320 EEC and 2002/78 EC Standards.
WHEELS AND TIRES :
- 6+1 385 / 65/ R 22.5 tubeless tires with 22.5 /11.75 steel wheels.
LIFTING AXLE :
- Provision of a lifting front axle that prevents tire wear and simplifies turning maneuverability
MECHANICAL LANDING GEAR :
- Double Speed JOST Brand mechanical landing gear with 24 Ton carrying capacity
KING PIN :
- 2” Flanged type JOST brand King Pins that comply with 94/20 EEC norms.
AIR SUSPENSION:
- Provided with height adjusting system and Shock absorbers to limit movements of the parabolic Z springs and axles
PROPERTIES AND ADVANTAGES OF OUR REFRIGERATING PANEL PRODUCTS
* Our panels are of sandwich type made of high density polyurethane materials. The panels have been pressed hermetically (full sealed) on the basis of wet on wet style.
* The rear frame made of AISI 404 stainless steel is inserted into the panels during operation, thereby forming a single part. In this way, no rivets are used; and even if a long period has past, the rear frame never separates from the panel.
* They have low weight, (light)
* Due to their low heat capacity, the panels can keep the inner temperatures very low. The Refrigerated unit consumes little fuel hence helps considerable , saving in the fuel consumption.
* The reinforced refrigerated box floor is robust enough to handle the designed loads perfectly
* The panels are incorporated with polypropylene tubes to achieve electrical installation. In this way no water (in case of rain) can penetrate the box.
* These products are available at a diverse range of dimensions (i.e. 50, 60, 80 and 100 mm thickness) and accessories to satisfy customers.
* In case of accident, it is possible to replace just one door or any other section of the box (e.g. rear door, roof or floor)
* The pallet bands (supports) located into the panels help with reinforcing the box.
PANEL DIMENSIONS:
- FLOOR: 100 mm
- REAR DOOR: 80 mm
- FRONT WALL: 100 mm (Attached with the Cooling Unit)
- ROOF: 100 mm (Rear section reinforced and provided with air ways)
- SIDE PANEL: 60 mm
- Specıfıcatıons of refrigerated Box Semi-Trailers:
ENERGY DATA: Heat Transfer Coefficient, 0.313 W/m2K
- 30 ˚C 0 ˚C 17391 W
- 30 ˚C 10 ˚C 13326 W
- 30 ˚C 20 ˚C 9300 W
