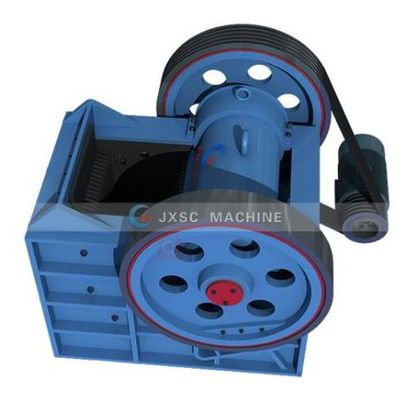

JXSC - Jaw Crusher
JXSC jaw type rock crusher is usually used as a primary crusher and secondary crusher to reduce the size of medium-hard materials to smaller physical size. Jaw rock crushers are capable of working with the mobile crushing station, underground crushing because of its related small volume.
Capacity: 1-1120TPH
Max Feeding Size: 120-1200mm
Application
Mining, metallurgy, building materials, quarrying, gravel & sand making, aggregate processing, recycling, road and railway construction and chemical industry, etc.
Suitable Material
Granite, marble,basalt, limestone, coal, quartz, pebble, iron ore, copper ore, etc.
Features
40 years of manufacturing and engineering experience keep us innovative and knowledge in the rock break machines and its applications, which thus provide reliable industry rocks crushers and solutions for every customer using jaw crusher manufacturers JXSC machines to meet their production goals. The jaw crusher machine family consists of different sized models that are designed to bring maximum output with minimum cost. Some workplaces have limited conditions and are unable to provide electricity or are underpowered. According to these conditions, JXSC specially designed diesel jaw crusher. The diesel-jaw crusher is actually with electric, but the original jaw crusher was added with a diesel engine equipment that a dual-purpose crusher.
- Simple structure, easy to use and maintain, stable performance, low operation cost, large crushing ratio.
- The crushing chamber deep and no dead zone improves the feeding capacity and output.
Product particle size even. - Big adjustment range, increased the flexibility of the mining machine.
- The lubrication system is safe and reliable, the parts are easy to replace, the maintenance workload is small.
- Equipment Energy Saving: single energy-saving 15% ~ 30 %, system energy saving more than double.
- Low Noise, little dust.
Jaw crusher parts that contain frame, movable and stationary plate, bearing, eccentric shaft, toggle jaw, flywheel, eccentric shaft, belt pulley, back-moving spring, jaw plate crusher parts.
Solid and durable property
JXSC the crushers machine with a non-welded frame has been proved that it has outstanding solid and durable strength. All the alloy casting frame components turn out that with premium quality, wear-resistant property.
Crushing performance
The design of pitman and long stoke improves productivity and reduction. A wider feeding material opening increases the volume of insulating material and makes the ore material entering the crushers crushing chamber smoothly. A sharp angle makes the materials flow down speed faster and reduces the wear cost. Besides, the strike force could be stronger thus increase the production efficiency as well as the reduction ratio.
Types of jaw crushers: on the basis of the stone break equipment size and capacity can divide into a heavy and small(mini) portable jaw rock crushers. According to the working principle can be split into single toggle and double toggle jaw rock crushers machine.
A series of jaw stone crushers use compressive and squeezing force for reducing materials. This physical force is created by the two jaw plates, one of which is a movable plate and another is fixed, both of them are made of manganese. A V-shaped cavity, crushing chamber, is formed and the hydraulic discharge gap width of the crushing chamber, we can determine the suited feeding material size and discharging size, the width of top feeding is larger than that of bottom discharging.
The uses of jaw crushers
Jaws machine which can as a stationary jaw crusher to crushing hard minerals, such as coal, concrete, iron ore. And it also can use in the laboratory.
Jaw crusher is a heavy-duty machine that crushes hard materials. So its hence muse be robustly constructed. Crusher frame is made from steel or cast iron. The jaws are made of cast steel. The liners are made from“Ni-hard,” Ni-Cr alloyed cast iron or manganese steel which can replaceable and use to reduce frame wear. The cheek plates are also made from hard alloy steel and installed to the sides of the crushing chamber to protect the frame from wear.
The jaws can be made in smooth or corrugated, but often corrugated. Because the latter crushing the hard and abrasive ores is better. The angle between the jaws is usually less than 26°. This is because a large angle will cause the particle to slip which non-crush.
It uses curved plates to avoid the near the discharge of jaw crusher blocking. The bottom of the swinging jaw is concave, and the relative lower part of the fixed jaw is convex. The materials reduction in size when nears the exit. So the material is distributed over a larger area, and the jaws plates wear less.
The type of crushed materials determines how to design the max amplitude of swing of the jaw and the amplitude adjusted by changing the eccentric. The length from 1 to 7 cm depends on the crusher machine size. Jaw crushers are supplied in sizes up to 1,600 mm (gape)×1,900 mm (width). For coarse crushing application (closed set~300 mm), capacities range up to 1200 tph.
