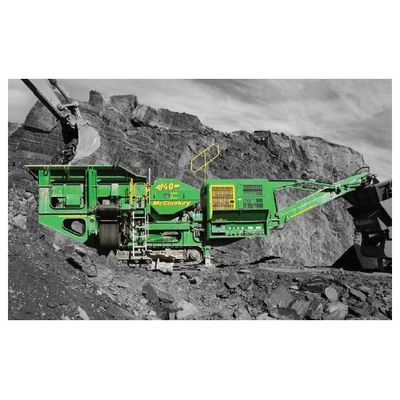

McCloskey - Model J40 -Jaw Crusher
The J40 Jaw Crusher continues McCloskey’s focus on quality, durability, and productivity. With its heavy duty cheekplate design, 40″ wide jaw and user-friendly control panel with excellent machine diagnostics, the J40 jaw crusher provides contractors with a highly portable option while meeting all production expectations. At 2.5 metres wide, the J40 jaw crusher is ideal for applications that require a high degree of mobility.
Maximum productivity is delivered through the enhancements to the deep jaw box, including a faster jaw speed and a larger gap between the crusher discharge and main conveyor feedboot. The J40 retains the core values expected in a full size McCloskey jaw crusher, including high capacity production and heavy duty build, packaged for efficiency and mobility.
- True 1016mm (40") x 610mm (24") jaw
- Hydraulic direct drive grizzly feeder
- High capacity hydraulic folding hopper
- 900mm (36") main conveyor
- User friendly control panel
- Ideal 2.5m (8` -2.5") wide transport size
- Optional overband magnet
- 10 minute set up time
- Engine*: 166kW (225HP)
- Feed Opening**: 1016mm (40") x 610mm (24")
- Crusher Speed: 300 rpm
- Grizzly Feeder: 3840mm (12`-7") x 950mm (37`-4")
- Hopper Volume: 5.4m³ (7.4yd³)
- Stockpile Height Main Conveyor: 11` 4.2" (3.45m)
- Stockpile Height Side Conveyor: 8` 2" (2.50m)
*Engine options vary. Consult your local dealer.
**Peak to trough.
