Jet-Mixing - Structured Static Mixers

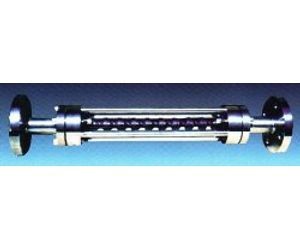

The Jet-Mixing is Structured Static Mixer, that use the ‘helier - Structured Packing’ to properly Mix the Process Fluids. Available in different Equivalent Diameters and in different Net Mixing Lengths, the Jet-Mixing Static Mixers apply the helier - Structured Packing of 1`, 1.5` e 4` Nominal Diameter. Thanks to the Radial Mixingto the Inter-Flow Mixing (guaranteed by the use of the chosen packing) and to the geometric properties of their Mixing Beds, the Jet-Mixing Structured Static Mixers permit the optimization of all the mixing parameters. The Jet-Mixing can be applied in all the fluid flow ranges from Re > 10, and satisfies the request of all types of fluids ( Newtonian, Non-Newtonian, Tensio-plastic, etc ... ).
The use of the ‘helier - Structured Packing’ gives the fluid an axial motion , giving it an helicoidal movement towards the axis. To this component must be added :
- the wall effect between the unit and the external wall of the mixer
- the radial & inter-flow mixing effect for N° Col
In the industrial applications the goal of the Jet-Mixing Structured Static Mixers is to provide a the in-line mixing of the process fluids . The Jet-Mixing guarantees an adequate and continuous mixing of the fluids, in accordance with:
- the process conditions
- the rheological properties of the fluid.
The use of the Jet-Mixing guarantees
- the lowest pressure drop
- the highest mixing(both radial & axial)
- adequate tMIX and VMIX
The Geometry
With the same net mixing length , the Jet-Mixing Structured Static Mixers are at least available in three equivalent sections equal to:
- N° Columns = 1 ,
- N° Columns = 3 ,
- N° Columns = 7 .
The combination << N°Columns X N°Elements >> permits to supply and set:
- the adequate mixing volume (M V)
- the proper mixing time τMIX
- the right mixing ratio
according to the process conditions and to the fluid rheological propertie
The Jet-Mixing Structured Static Mixers are characterised by the following parameters
- the diameter DPacking of the structured packing
- the N° Columns per section
- the N° Elements of the packing used per length unit
- the Equivalent Diameter : DEq
- the minimum geometric mixing ratio : LNet / DEq
Two Models : Open Model & Closed Model
The Jet-Mixing are available in two models
- Open Model
- Closed Model
Basic Equiment : Jet-Mixing 1”, 1 x 9
The Basic equipment is the mixer with:
- only one column per section, i.e. N° Columns = 1
- 1”, i.e. built using 1” helier - Structured Packing
- LNet= 9 Elements ,
that means Jet-Mixing 1”, 1 x 9.
Special Applications include the Mixing of Diluted Acetic Acid with Glacial Acetic Acid .
Customized Equipment
Customized Equipment especially manufactured for
- Oil & Gas
- Process Industry
- Special Applications
are available .
In particular the Mixers that are used in special process/industrial operation such as : Washing, Coal … De-Super-Heating, Cut … Oxidizing ... Tar ... are properly made on Client request and specification.
The Jet-Mixing are mainly used for
- Fluid Mixing `
- In Line Adding of Reagents `
in the following sectors
- Process Operations
- Mixing of Process Fluids
- plants Disinfections (chemical & pharmaceutical industry)
- Waste Water treatment, deodorization & disinfaction
- Air Scrubber treatment, deodorization & disinfaction
