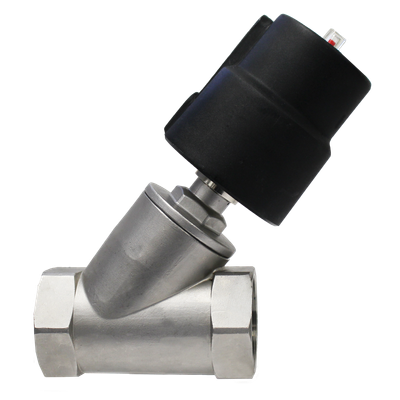

Kingston - KAV Pneumatically Actuated Angle Seat Valve

SHARE
The Kingston KAV angle seat valve is a pneumatically actuated valve featuring a 2/2 way configuration, designed specifically for demanding applications. Its robust aluminum alloy actuator ensures durability, making it suitable for various general service applications. The unique angle seat valve design allows for high flow rates while minimizing pressure drop, enhancing its efficiency. Notable features include a high cycle-life, a visual indicator, a robust seat and stem, and a 360° rotating actuator head. This valve is versatile, adept for use in numerous applications such as steam sterilization, textile drying, air separation, and automotive assembly. With an integrated pneumatic actuator, it proves to be highly functional in processes ranging from pharmaceutical manufacturing to wastewater treatment, ensuring reliable performance in complex and challenging environments.
Most popular related searches
pneumatic actuator
angle valve
pneumatic actuator valve
actuated valve
air drying system
process wastewater treatment
air separator
air separation
wastewater treatment
rubber processing

Angle Seat Valves for Demanding Applications.
The KAV
Pneumatically actuated 2/2 way angle seat valve
The externally piloted angle seat valve is operated with a single or double–acting piston actuator. The durable aluminum alloy actuator is suitable for most general service applications. The KAV achieves high flow rates due to the angle valve flow path design, which also minimizes pressure drop through the valve.

  • High Cycle-Life
  • Visual Indicator
  • Robust Seat & Stem
  • Actuator Head Rotates 360°
  • Integrated Pneumatic Actuator
  • Suitable for General Service Applications

Sterilization/Autoclaves | Steam Applications |  Keg Cleaners |  Air Drying Equipment | Process Control Applications | Laundry Equipment | Textile Dying & Drying | Air Separation | Filling Operations | Packaging |  Refrigeration | Pneumatic Transport | Rubber Processing | Ceramics Processing |  Automobile Assembly | Shoemaking | Road Maintenance | Ultrasonic Filtration | Pharmaceutical Manufacturing | Feed Processing | Industrial Compressors | Powder Metallurgy | Nitrogen Generators | Resin Chemical Processing | Wastewater Treatment

Port Size: 3/8” to 2-1/2” NPT
Body Materials: 304 Stainless Steel: standard
316 Stainless Steel: on request
Actuator Material: Aluminum Alloy: standard
Plastic: on request
304 Stainless Steel: on request
Seal Material: PTFE standard, FKM on request
PTFE standard, FKM on request
FKM standard, NBR on request
Media: Air, Gas, Steam, and Liquid
Temperature: -20°F to 400°F
Viscosity: Maximum .93 in2/s
Operating Pressure: Up to 232 psi maximum
Max. Actuator Pressure: See Chart Below
Tri-Clamp: Available Upon Request
Butt Weld: Available Upon Request
ANSI Flanged: Available Upon Request
