KERBER - Mobile Complex of Tank Cleaning Systems
Light and heavy oil and reservoir cleaning and washing systems Kerber. The mobile system Kerber is designed for cleaning and washing from oil sludge and other sediments tanks used for storing heavy and light oil and petroleum products. Kerber was designed based on UOG-15 series oil sludge treatment complexes. Our company produces a line of these systems for different capacity and designs of the oil storage facilities. This unit could be used for tanks with the capacity upto 100,000 m³.

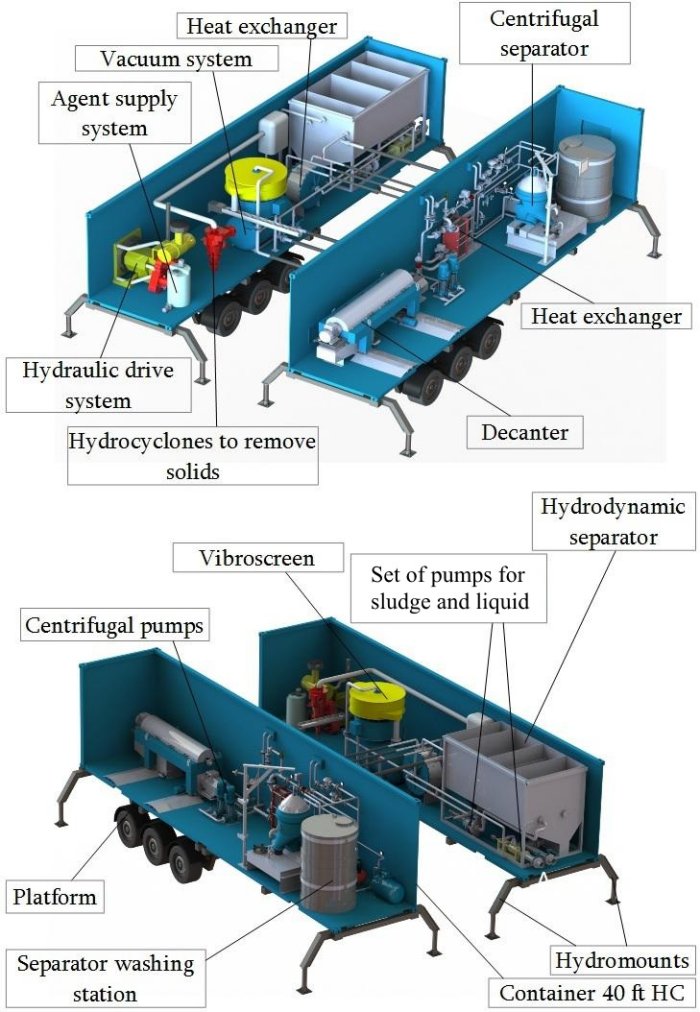

The treatment unit has a full mobile operation and can be placed in two 40 ft high cube containers (HC). The removed sediment undergoes maximum separation: at the first stage the mechanical impurities are separated from the received pulp, At the next stage the liquid mixture is separated in two fractions : water and hydrocarbons.
Unit operation requires electricity supply and hot water supply or steam from the boiler station. If required, the unit can be additionally equipped with a generator set and mobile boiler station.
- Specification: Value
- Maximum tank volume, ft³: 3,500,000
- Sludge pumping performance, m³/hour: 5-10
- Power consumption, kW: 186
- Size of containers for the mobile unit, ft: 2 containers of 40 ft HC
- Operational weight, pound: 18,700 and 30,000
- Operating temperature range, F: +40...+105°
- Characteristics of cleaned materials:
- Hydrocarbon content in mechanical impurities: not standardized
- Water content in mechanical impurities: not standardized
- Water content in hydrocarbon: 0,5%
- Hydrocarbon content in water: could be as low as 25 ppm
- Mechanical impurities content in water: could be as low as 15 ppm
- Consumption of water for washing, ft³: 175
- Required boiler station/steam generator capacity, kW: 1,200
