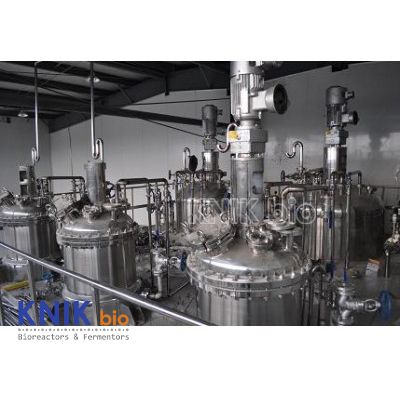

KNIK - Customized Bioreactor System for Fermentation
This customized bioreactor system is designed for biological fermentation manufacturing, catering to research, development, pilot, and production needs. With a working volume ranging from 1000 to 10000 liters, the system is constructed primarily from durable 316L stainless steel, complemented by 304 stainless steel components. It features a sophisticated control system using Siemens PLC, an industrial LCD touch computer, allowing parameter settings to be stored and remote connectivity through USB. The design supports an internal and interlayer pressure of 0.3Mpa, with superior polishing precision at Ra0.4-0.6 and a height-to-diameter ratio of 1:2.3. The apparatus includes an advanced mechanical seal stirring system, offering variable speeds between 70 to 1200 rpm. The bioreactor is equipped with autocontrol mechanisms for temperature, pH, DO, and pressure, utilizing high-quality components from Denmark, the U.S., and Switzerland for precise control. Manufacturing is based in China, supplying various fermentation equipment including stainless steel and glass fermentors.
- Working volume:1000L -10000 liters
- Material: 316L stainless steel with material contact to the other 304 stainless steel
- Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be
- remotely connected to the computer through the USB interface, the data
- The main material of the fermenter is made by 316Lstainless steel. The design pressure: P(inside)= 0.3Mpa, P(interlayer)= 0.3Mpa,The polishing precision: Ra0.4~0.6, the ratio between diameter and height: 1:2.3 Sterilization method : auto sterilizing in situ
- Stirring system
- Mechanical sealing system at the top of the fermenter; high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 70-1 2 00rpm±l%,The height of the stirring oar can be adjusted, too.
- Temperature detection and control
- Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling
- water+5°C)~65oC±0.1°C, temperature probe(US)
- pH detection and control
- 2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead
- (Mettler, Switzerland), fermenter is autocontrolled with peristaltic pump
- DO detection and control
- 0-150±3% displaying precision 0.1%. sensor (Mettler. Switzerland) and shielding lead(Mettler, Switzerland)
- Feed control
- fermenter uses peristaltic pump (Longer) to add meterials
- Antifoam control
- Tested by sencor and added antifoamer by peristaltic pump
- Intake control (air) :manual control rotameter
- pressure detection and control
- Pressure Control: Pressure meter and digital display and digital remote control, pressure control
- we are compliant fermentation equipment for research, development, pilot and production applications. Our Factory in China. We provide the fermentor products including : Stainless steel fermenter. Pilot combo stainless steel fermentor. glass fermentor, fermenter, Multi-Union fermenter, Multi-stage fermentation tank, and shaking Incubators, Positive join stainless steel fermentor.
