KOBELCO Construction Machinery USA

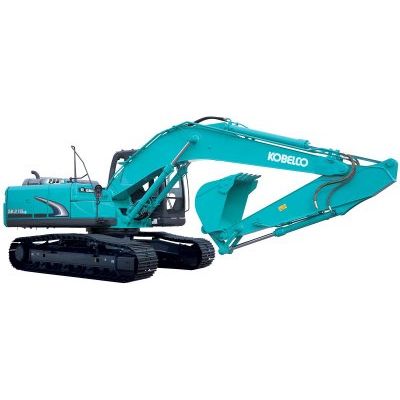

KobelcoModel SK210LC-8 -Conventional Excavators

SHARE

When we set out to design our new hydraulic excavators, we kept our eyes on the big picture. Of course we wanted machines with greater digging capacity. But they also had to be fuel-efficient and 1 economical, while imposing less of a burden on the I local and global environments. Applying our advanced technologies, we developed SK series excavator that beautifully balances all the demands of today`s construction industry. Lean and efficient with capacity to spare, these sleek powerhouses bring a whole new style to the worksite while setting new standards for environmental responsibility.

Most popular related searches
  • Overall length: 9.640: 9.560
  • Overall height (to top of boom): 3.160: 2.980
  • Overall width: 2.990: 2.990
  • Overall height (to top of cab): 3.030: 3.030
  • Ground clearance of rear end*: 1.060: 1.060
  • Ground clearance*: 450: 450
  • Tail swing radius: 2.860
  • Distance from center of seing to rear end: 2.860
  • Tumble distance: 2.860
  • Overall length of crawler: 3.660
  • Track gauge: 4.450
  • Shoe width: 2.390
  • Overall width of upperstructure
  • (With Catwalk / Without Catwalk): 600/700/800
  • Model Name : SK210LC
  • Machine Type : SK210LC-8
  • Operating Weight : 21,300 kg / 21,700 kg / 21,900 kg
  • Engine : Model : HINO J05E-TA
  • Type : Direct injection, water-cooled, 4-stroke diesel engine with turbocharger, intercooler
  • Rated power output : 158 HP/ 2.000 rpm (ISO14396:2002)
  • Fuel tank : 370 L
  • Swing System : Swing Speed : 12,5 min-1 {rpm}
  • Travel System : Travel motors : 2 x axial-piston, two-step motors
  • Travel shoes : 49 each side
  • Travel speed : 6.0 / 3.6 km/h
  • Drawbar pulling force : 229 kN
  • Gradeability : 70% {35°}
  • Hydraulic System : Pump Type : Two variable displacement pumps +1 gear pump
  • Max.discharge flow : 2 x 220L/min, 1 x 20L/min
  • Hydraulic oil tank : 146 L tank oil level
