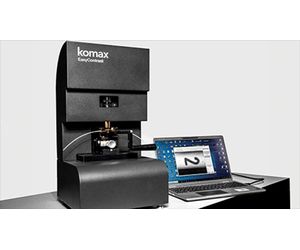

Komax EasyContrast - Contrast Measurement System
EasyContrast simplifies wire marking verification by assessing contrast on all types of white and light-colored cables, saving time and ensuring accurate identification. EasyContrast is an advanced solution that guarantees precise and consistent contrast measurement, adhering to the standards of EN 3475 - 705 and SAE AS 4373. Specifically designed to meet the stringent quality demands of the aerospace industry, including Airbus''s AIPS and Boeing''s BAC5152 standards, EasyContrast ensures uncompromised performance. With its fully enclosed optical-mechanical system, EasyContrast integrates key components for reliable operation. These include a halogen light source, a 45-degree double-track lighting system with exceptional uniformity, a video acquisition system that eliminates stray light interference, and a versatile cable/wire holder that prioritizes ergonomic functionality. The system achieves high traceability of measurements and reports.
Rapid checks and full traceability
EasyContrast offers a "referenced measurement" mode for traceable measures and generates detailed reports with pictures. Quick measure mode enables rapid checks.

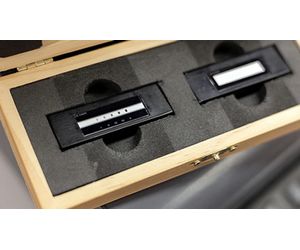

The EasyContrast certified calibration block allows an easy check of the system and guarantees accurate results over the long term.

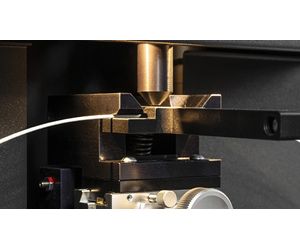

Thanks to a convenient handle, the cable is easily installed for rapid measure. A wheel on the wire mount enables multiple measurements without reinstalling.
EasyContrast
Metric
- Height: 570 mm
- Electrical connection: 90 – 230 VAC / 50-60 Hz
- Weight (approx.): 20 kg
- Length: 300 mm
- Width: 340 mm
- Measurement range on white and coloured cables: 0 - 99 %
- Accuracy: < 1%
- Reproductibility: < 0,5 %
- Contrast calculation time: Instant measurement
- Lighting adjustment: Automatic adjustment of lighting parameters by using the white sample supplied with the system
- Measurement field: 65 x 2 mm
- Calibration: Use of a specific certified standard calibration recommended once a year
- Contrast check: Use of contrast standard provided with the system
Imperial
- Height: 22.4 in
- Electrical connection: 90 – 230 VAC / 50-60 Hz
- Weight (approx.): 44 lb
- Length: 11.8 in
- Width: 13.4 in
- Measurement range on white and coloured cables: 0 - 99 %
- Accuracy: < 1%
- Reproductibility: < 0,5 %
- Contrast calculation time: Instant measurement
- Lighting adjustment: Automatic adjustment of lighting parameters by using the white sample supplied with the system
- Measurement field: 2,56 x 0,08 in
- Calibration: Use of a specific certified standard calibration recommended once a year
- Contrast check: Use of contrast standard provided with the system
