Komax - Model C1380 -Fully Automatic Crimp Module for Wire Processing Machine
The C1380 crimp module for the fully automatic Alpha 560 wire processing machine enables the crimping process for particularly wide wire cross sections from 2.5 to 16 mm². With a wide processing range of large conductor cross sections and a high crimp force of up to 50 kN, the C1380 is versatile in the heavy-duty sector: The crimp module enables precise and powerful processing for solid grounding cables, battery cables or other thick conductors with demanding terminals. Fully integrated CFA+/CFA crimp force monitoring as standard results in minimal waste. Wire positioning directly on the module and the inching speed reduce the time required for setup, changeover and sampling. This ensures continuous high productivity, reproducibility and quality. The entire crimping process can be controlled easily and precisely via the HMI with user guidance.
Innovative operation on the crimp module

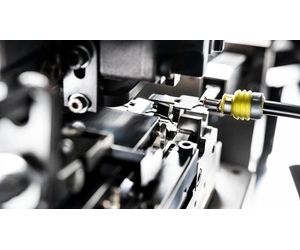

Wire positioning directly on the module reduces the time required for setup, changeover and sampling. The inching mode ensures precise crimp position setup.
With a maximum crimping force of 50 kN, even complex terminals up to 55mm in length can be easily processed in a reproducible manner.

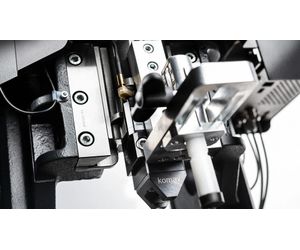

The precise crimp applicator fixture with the integrated CFA sensor ensures high production quality. CFA+/CFA crimp force monitoring reduces waste to a minimum.
C1380
Metric
- Wire cross section min.: 2.5 mm²
- Wire cross section max.: 16 mm²
- Crimp force max.: 50 kN
- Stroke programmable in 1mm/0.04 inch steps min.: 30 mm
- Stroke programmable in 1mm/0.04 inch steps max.: 40 mm
- Crimp force monitoring: CFA / CFA+
- Height of wire line, standard foot: 270 mm
- Setting range for wire line max.: 25 mm
- Shut height: 135.8 mm
- Communication: EtherCAT bus
- Attachment of crimp applicator: Quick clamping device
- Number of reference crimps: 1 teach-in crimp
- Electrical connection: 3×208 – 480 V; 50 / 60 Hz (operation at 3×208 V can cause a slight reduction in the piece output.)
- Low voltage: 24VDC max. 2A
- Fuse protection: 3×400 VAC (360-530 VAC) size of automatic circuit breaker type B min. 4 A 3×480 VAC (360–530 VAC) size of automatic circuit breaker type B min. 6 A 3×208 VAC (180–250 VAC) size of automatic circuit breaker type B min. 6 A
- Compressed-air connection: 5–8 bar
- Operating pressure min.: 5.5 bar
- Operating pressure max.: 6.125 bar
- Operation outside the recommended operating pressure: Non-compliance with the recommended operating pressure can restrict the proper functioning of peripheral devices. Please also observe the technical data for peripheral devices.
- Weight: 196 kg
- Length: 420 mm
- Width: 575 mm
- Height: 1180 mm
- Interfaces: M-Link (terminal feed, terminal end recognition, material change detection), terminal strip chopper, air feed set
- Hard, tough wires: In the case of extremely hard, ductile or thick-stranded wires, processing might not be possible even within the cross section range. In case of doubt, Komax will be happy to provide processing samples of your wires.
Imperial
- Wire cross section min.: AWG14
- Wire cross section max.: AWG6
- Crimp force max.: 11240 lbf
- Stroke programmable in 1mm/0.04 inch steps min.: 1.18 in
- Stroke programmable in 1mm/0.04 inch steps max.: 1.57 in
- Crimp force monitoring: CFA / CFA+
- Height of wire line, standard foot: 10.62 in
- Setting range for wire line max.: 0.98 in
- Shut height: 5.35 in
- Communication: EtherCAT bus
- Attachment of crimp applicator: Quick clamping device
- Number of reference crimps: 1 teach-in crimp
- Electrical connection: 3×208 – 480 V; 50 / 60 Hz (operation at 3×208 V can cause a slight reduction in the piece output.)
- Low voltage: 24VDC max. 2A
- Fuse protection: 3×400 VAC (360-530 VAC) size of automatic circuit breaker type B min. 4 A 3×480 VAC (360–530 VAC) size of automatic circuit breaker type B min. 6 A 3×208 VAC (180–250 VAC) size of automatic circuit breaker type B min. 6 A
- Compressed-air connection: 72.5 - 116 psi
- Operating pressure min.: 79.8 psi
- Operating pressure max.: 88.8 psi
- Operation outside the recommended operating pressure: Non-compliance with the recommended operating pressure can restrict the proper functioning of peripheral devices. Please also observe the technical data for peripheral devices.
- Weight: 432.10 lb
- Length: 16.54 in
- Width: 22.63 in
- Height: 46.46 in
- Interfaces: M-Link (terminal feed, terminal end recognition, material change detection), terminal strip chopper, air feed set
- Hard, tough wires: In the case of extremely hard, ductile or thick-stranded wires, processing might not be possible even within the cross section range. In case of doubt, Komax will be happy to provide processing samples of your wires.
