Komax - Model M1630 Jet Eco -Wire Marking Systems
The M1630 Jet eco inkjet printer for Kappa 3xx machines makes fast, flexible printing affordable, even in the economy segment. The eco version offers the main advantages of the M1630 Jet inkjet wire printer with optimal integration into the wire processing process, wire-specific printing functions, low operating costs, high availability and user-friendly operation. For the lower price, however, the M1630 Jet eco comes with reduced equipment and is therefore limited to machines that do not require the top performance of the M1630 Jet. For example, marking with the eco is significantly slower at 5.7m/s than the Jet variant at 7.4 to 12m/s. The quick font option is not possible. The cable labeling device M1630 Jet eco is available in the versions BC (for black or slightly pigmented marking) and P (with highly pigmented inks).
Cost-effective wire marking of the best quality
The M1630 Jet eco offers efficient wire marking in top quality at an economy rate. Low operating and maintenance costs reduce the cost per wire.

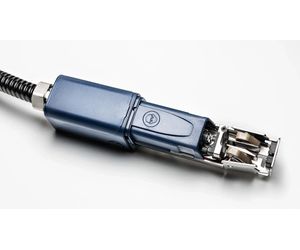

Thanks to modern manufacturing processes, the angular print head makes it an attractive option. A practical cleaning station is available as an option in the range of accessories.
The M1630 Jet eco can be used independently of a machine to print on parts such as housings, plugs, and printed circuit boards, a significant additional benefit.
M1630 Jet eco
Metric
- Wire outer diameter min.: 1.1 mm
- Character height min.: 0.9 mm
- Character height max.: 4.6 mm
- Ink cartridge contents: 825 ml
- Make-up cartridge contents: 1200 ml
- Print speed 5x5, H 2mm, H/W =1 max.: 5.5 m/s
- Print speed 5x5, H 2mm, H/W =1.4 max.: 7.7 m/s
- Printer type: Continuous inkjet
- Print head shape: Square
- Grid (character matrix): 5×5, 5×5 (Kamin), 7×5, 7×5 (Kamin), 11×7
- Position accuracy: Typically ±1 - 2 mm + 0.1 - 0.2 % of wire length
- Interfaces: Ethernet (TCP/IP)
- Connection options: All Kappa 3xx
- Electrical connection: 1 x 110–240 V, 50/60 Hz, 40 W in idle mode, 80 W in operation
- Weight: 22 kg
- Housing material, protection class: Stainless steel, IP55 (splash-proof), electronics IP 66
- Dimensions/printer with 7" touch panel: 430 mm
- Dimensions/depth: 430 mm
- Dimensions/width: 381 mm
- Dimensions/height: 411 mm
- Control panel: Color touch panel, optionally 7“ or 10.4”; can be used for several printers
- Head hose length: 3000 mm
- Signaling: Signal light with 4 colors and buzzer
- Make-up recovery: Standard feature
- Sliding table: for marking individual goods
- Humidity, non-condensing: 90 %
- Temperature operation: 5-45 °C
- Imperial
- Wire outer diameter min.: 0.043 in
- Character height min.: 0.035 in
- Character height max.: 0.18 in
- Ink cartridge contents: 27.9 oz
- Make-up cartridge contents: 40.6 oz
- Print speed 5x5, H 2mm, H/W =1 max.: 18 ft/s
- Print speed 5x5, H 2mm, H/W =1.4 max.: 25.3 ft/s
- Printer type: Continuous inkjet
- Print head shape: Square
- Grid (character matrix): 5×5, 5×5 (Kamin), 7×5, 7×5 (Kamin), 11×7
- Position accuracy: Typically ±1 - 2 mm + 0.1 - 0.2 % of wire length
- Interfaces: Ethernet (TCP/IP)
- Connection options: All Kappa 3xx
- Electrical connection: 1 x 110–240 V, 50/60 Hz, 40 W in idle mode, 80 W in operation
- Weight: 48.5 lb
- Housing material, protection class: Stainless steel, IP55 (splash-proof), electronics IP 66
- Dimensions/printer with 7" touch panel: 16.9 in
- Dimensions/depth: 16.9 in
- Dimensions/width: 15 in
- Dimensions/height: 16.2 in
- Control panel: Color touch panel, optionally 7“ or 10.4”; can be used for several printers
- Head hose length: 118 in
- Signaling: Signal light with 4 colors and buzzer
- Make-up recovery: Standard feature
- Sliding table: for marking individual goods
- Humidity, non-condensing: 90 %
- Temperature operation: 41 - 113 °F
