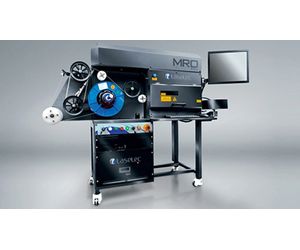

Komax - Model MRO 200 Av/Bv -V Laser Wire & Cable Marking System
The MRO 200-Av and MRO 200-Bv are high-tech vector wire marking machines for harness manufacturing. The laser technology offers precise and efficient wire identification solutions. Combined with a proven, reliable mechanical design, the MRO 200-Av and MRO 200-Bv feature state-of-the-art laser vector marking technology. The innovative diode pumped laser ensures efficient marking performance. Both machines are designed for minimal maintenance and operator convenience, with tasks limited to spool changes, cable loading, coiling pan emptying, and PC keyboard control. Utilizing the mask-less feature, the MRO 200-Av/Bv directly marks characters and barcodes on the cable. Furthermore, it offers the added advantage of creating and adjusting character sizes, enhancing both productivity and flexibility.

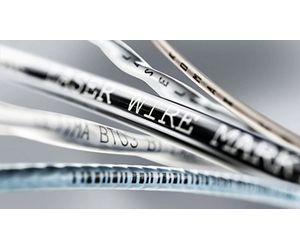

Precise, non-aggressive and permanent marking
UV laser marking ensures safe, permanent, high-contrast cable identification with zero risk of alteration. It guarantees a reliable UV-mark, eliminating any identification issues.
Flexible vector marking solution of the MRO 200 Av/Bv includes ASCII characters, Code 39 barcode, and multiple fonts for diverse marking specifications.
With no mask, no flash lamp and no water cooling, this solution offers lower operating costs. The MRO 200 vector marking machines require no consumables for the laser.
Operating the machine only requires minimal training. The air-cooled and mask-less laser technology enhances user comfort by reducing noise levels and energy consumption.

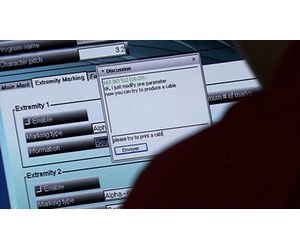

High machine availability with no external adjustments or daily maintenance are possible. Test menus and remote software enable quick, reliable diagnosis.
MRO 200 Av/Bv
Metric
- Wire length max.: 999000 mm
- Electrical connection: 220 AC (+/-10 VAC) – 20 A
- Electrical connection (optional): 208 V AC (+/-10 VAC) – Phase / Phase 20A
- Compressed-air connection: 6 bar
- Weight (approx.): 330 kg
- Length: 1560 mm
- Width: 710 mm
- Height (with safety cover closed): 1260 mm
- Humidity, non-condensing: < 80 %
- Ambient temperature: 15 - 30 °C
- Laser: UV laser
- Laser security: Vector, Class I laser compliant with European (CE) and American (FDA) standards: suitable
Imperial
- Wire length max.: 39331 in
- Electrical connection: 220 AC (+/-10 VAC) – 20 A
- Electrical connection (optional): 208 V AC (+/-10 VAC) – Phase / Phase 20A
- Compressed-air connection: 90 psi
- Weight (approx.): 727 lb
- Length: 61 in
- Width: 28 in
- Height (with safety cover closed): 50 in
- Humidity, non-condensing: < 80 %
- Ambient temperature: 15 - 86 °F
- Laser: UV laser
- Laser security: Vector, Class I laser compliant with European (CE) and American (FDA) standards: suitable
