- Model Series III - Belt Filter Press


The Komline-Sanderson Kompress Belt Filter is a broadly applicable product for dewatering municipal Biosolids and industrial sludges.

A Belt Filter Press is a Biosolids/sludge dewatering device that applies mechanical pressure to a chemically conditioned slurry, which is sandwiched between two (2) tensioned belts, by passing those belts through a serpentine of decreasing diameter rolls. The machine can actually be divided into three (3) zones: gravity zone, where free draining water is drained by gravity through a porous belt; wedge zone, where the solids are prepared for pressure application; and pressure zone, where medium, then high pressure is applied to the conditioned solids.

Typically, a belt filter press receives a slurry ranging from 1-4% feed solids and produces a final product of 12-35% cake solids. Performance depends on the nature of the solids being processed.

Product Range and Application

Komline-Sanderson's Kompress Series III Belt Filter Press is available in a three-belt (Model G-GRSL), a two-belt (Model GRS) and an extended gravity two-belt (Model GRSL) design. The three-belt G-GRS press has an independent gravity zone with a more open belt for more rapid drainage of the volume of water. The extended gravity design has a longer gravity drainage zone. Selection of the basic machine is a function of the type of sludge and feed solids.


  • Raw
    • Primary
    • Primary & Trickling filter
    • Primary & WAS
    • WAS
    • Contact Stabilization
    • Primary & RBC
  • Anaerobically Digested
    • Primary
    • Primary & Trickling Filter
    • Primary & WAS
    • Primary & RBC
  • Aerobically Digested
    • Oxidation Ditch
    • Primary & Activated
    • Contact Stabilization
    • Extended
    • Primary & RBC
    • WAS
  • Potable Water Plant
    • Alum Sludge
    • Lime Softening Sludge
    • River Water Silt
  • Industrial
    • Food Processing Wastes
    • Pulp & Paper Wastes
    • Chemical Sludges
    • Pharmaceutical Wastes
    • Industrial Wastes Processing Sludges
    • Petrochemical Wastes

Superior Features for Better Dewatering

The features that enable the Komline-Sanderson Series III Kompress to achieve substantially higher production rates and produce high cake solids at discharge are:

  • The use of the Roto-Kone® technology in the gravity zone

  • A wedge section with an adjustable angle of conversion of the belts
  • A large initial drum in the pressure/shear zone
  • An extended length pressure/shear zone
  • A choice of 2 belt or 3 belt dewatering systems
  • A design that allows the 3 belt design to be a combination thickener or dewatering system
  • A variable orifice polymer/sludge mixing valve to optimize polymer conditioning
  • Larger standard filtration areas for greater process throughput and higher cake consistency
  • A patented high rate drainage system that dramatically improves filtration rates
  • An easily adjustable, variable wedge compression zone that maximizes process rate and performance
  • A high performance, larger to smaller drum pressure profile for higher cake solids concentration
  • High quality structural frame materials and components for trouble-free, long lasting operation

Gravity Zone

The gravity zone is available in a standard length, extended length, and independent zone designed for normal, poor draining or dilute sludges.

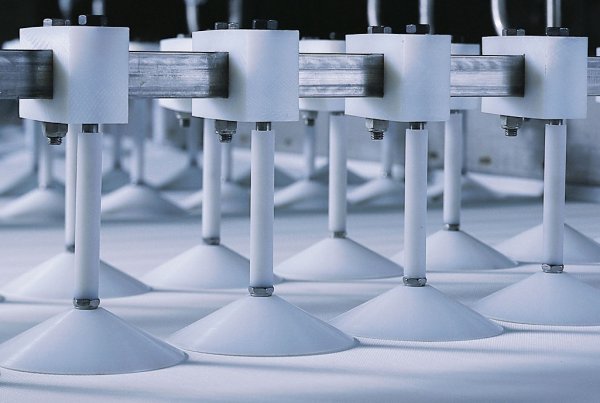

The Roto-Kone high rate drainage technology developed for enhancing the performance (higher production rates at higher thickened sludge solids) of our gravity belt thickener also has its application in the gravity section of our belt press by creating more residence time in the gravity zone thereby providing for greater drainage capabilities and higher solids concentrations at discharge. Other belt presses having standard plow systems cannot achieve equal production capabilities.

The independent gravity zone has the same capability as a stand-alone gravity belt thickener and, therefore, has application on a dilute sludge where the suspended solids are less than 1.5%. Further, the complete Kompress may be designed as a combination thickening unit/dewatering unit. In the thickening mode, a doctor blade is engaged at the discharge roll to remove thickened solids from the gravity belt. In the dewatering mode, the doctor blade is retracted to allow the thickened sludge to enter the wedge zone.

Wedge Zone

The adjustable wedge provides a gradually applied increasing pressure as the solids approach the first dewatering drum. Pressure is applied by the upper tensioned belt by moving the wedge zones entrance roller thereby reducing or eliminating solids migration beyond the belt edges which can occur on conventional press designs.

Pressure Zone

The pressure zone begins with a larger 30-inch diameter self-bailing, perforated dewatering drum designed to remove a high volume of filtrate and prevent 'upset' conditions.

Because of its large diameter, large belt wrap and perforated, self-bailing design, the initial drum extracts more water from the sludge at the inlet to the pressure/shear zone than does the conventional press and because of its internal baffle design prevents the rewetting of cake on the bottom half of the roll.

The use of this larger first drum and a succession of decreasing diameter drums gradually increases the pressure profile to a maximum dewatering force. A pressure drum profile up to a maximum of 14 drums provides an extra long pressure/shear zone with more belt area in contact with the dewatering drums and thus provides more time under pressure for more thorough dewatering than other presses of its type.

Finally, the extra long pressure/shear section provides more belt area in contact with dewatering drums and thus provides more time under pressure for more thorough dewatering than other presses of its type.

Automated Belt Filter Press

Komline-Sanderson can automate the operation of the Kompress Belt Filter Press by supplying the following options:

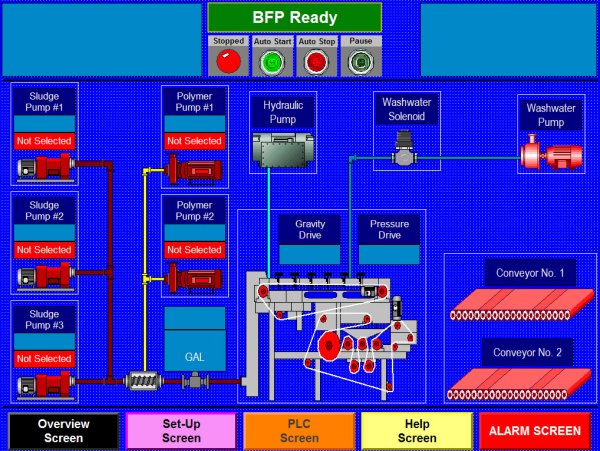

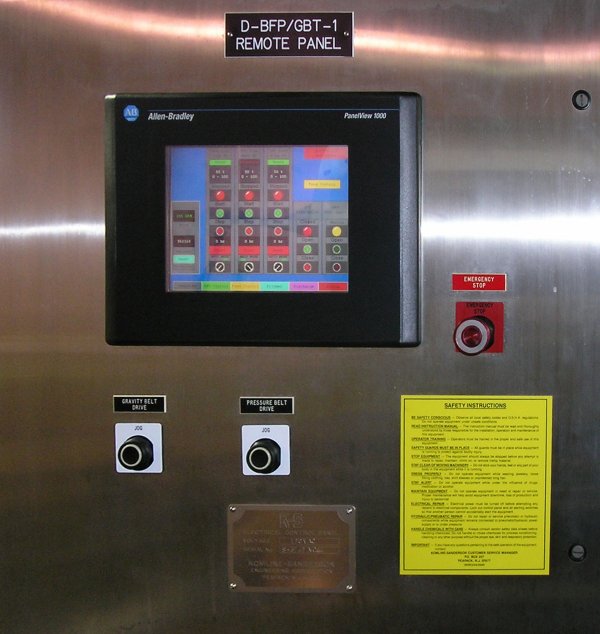

Available automation includes:

  • Startup and Shutdown
  • Level Control
  • Flow Control
  • Polymer Feed Rate
  • DCS interfacing
  • Alarms
  • Diagnostics and Trouble Shooting

Kompress Design

  • High quality structural frame materials and components for trouble-free, long lasting operation.
  • K-S custom designed and built instrumentation/controls for guaranteed system integrity
  • Outstanding operating features and technology advances for higher throughput capacity, lower operating cost, and easier maintenance

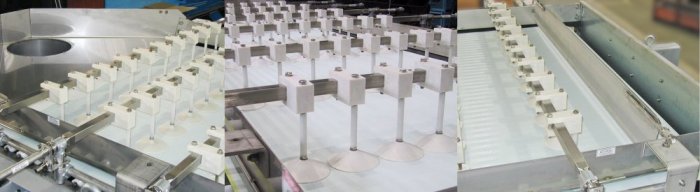

  • Highly efficient gravity zone with Roto-Kone® elements and Roto-Trak® plows that work sludge to promote rapid drainage
  • Feed section features flocculation tank and feedbox to uniformly apply sludge across entire width of belt while eliminating uneven distribution
  • Rack and pinion tension controls links both ends of take-up roll to assure parallel belt movement and prevent uneven belt tension
  • Self-bailing perforated first dewatering drum eliminates rewetting of the cake through removal of water from inside the drum
  • Gravity and wedge zone belt support bars are made of abrasion-resistant polyethylene and enhance dewatering by breaking surface tension of liquid
  • Heavy-duty 10x frame is 3/8' carbon steel hot dipped galvanized after welding. 304 and 316 stainless steel frames are available
  • Patented lifting mechanism in the high rate drainage system facilitates raising and lowering of plows and elements into or out of service
  • Built in safety rope surrounds the entire system for emergency shutdown. Additional automatic shutdown controls stop the system for low pneumatic/hydraulic pressure, gross belt misalignment or broken belt, drive failure or low belt wash pressure
  • Continuous belt washing is provided by fully enclosed wash stations with high pressure SS spray nozzles, internal cleaning brushes, special seals to eliminate noise and overspray, and access panels for convenient maintenance
  • Variable wedge compression zone can be easily adjusted during operation to set a dewatering gap that maximizes material process rate and performance
  • Replaceable polypropylene discharge blades extend over entire belt width and are counterweighted. Dry cake discharge is standard with optional discharge for thickened, pumpable sludge
  • Heavy duty split pillow block spherical roller bearings are all one size. A highly effective sealing arrangement protects bearings from external contaminants and water
  • A choice of 2 or 3 belt dewatering systems with standard, extended, or independent gravity zones for consistently high cake solids in varying sludge conditions
  • 2-belt system with standard gravity zone (GRS)
  • 2-belt system with extended gravity zone (GRSL)
  • 3-belt system with independent gravity zone (G-GRSL)

K-S process and project engineers provide assistance at all phases of the project. Depending on your specific requirements, K-S can provide you with a dryer/processor, or a complete system.

A successful plant depends on the integration of the key process units with properly selected ancillary equipment and the right facility design. Reliability, ease of operation, rugged construction, proven performance, and superior customer service are all trademarks of a K-S installation.

A K-S Biosolids Drying System includes a feed storage bin or silo and metering pumps (or conveyors). Dry product is cooled prior to storage or transport. When desired the final dry granular product can be screened to remove fines.

The off-gas volume is very low and at a low temperature. Odor treatment options include: direct injection into the aeration basin, bio-filters, scrubbers, absorbers, and thermal destruction.

Safety features must be part of the system design. The indirectly heated K-S Paddle Dryer operates with an inert low temperature environment. Air is not used to convey a hot product in the dryer.

Low temperature operation creates a safer operation:

  • Heating medium less than 400 °F (205 °C)
  • Vapor temperature less than 210 °F (99 °C)
  • Product temperature after dryer less than 260 °F (127 °C)
  • Product temperature after cooler less than 120 °F (50 °C)

Deflagration vent panels are incorporated into the dryers cover. These are ducted outside of the building. An automatic water deluge system is incorporated into the dryer to cool the biosolids in the event of a high temperature condition.
