Komptech Americas, LLC

  • High throughputs with general-purpose use
  • Aggressive feed with 2820 mm long, counter-rotating shredding drums
  • Quick-change system for screen basket and tools - change particle size in minutes
  • Direct drive with automatic 2-speed transmission (Crambo direct) or hydraulic drive with constant power control

3400

DRIVE
Power (kW): 1x160

SHREDDING UNIT
Number of screws: 2
Drum rpm: max.32
Drum length (mm): 2820
Drum diameter (mm): 610
Cutting elements: 134

WEIGHT (t)
Assembled unit: ~ 16.0

THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 45

5000

DRIVE
Power (kW): 1x200

SHREDDING UNIT
Number of screws: 2
Drum rpm:  max.32
Drum length (mm): 2820
Drum diameter (mm): 610
Cutting elements: 134

WEIGHT (t)
Assembled unit: ~ 16.8

THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 60

6000

DRIVE
Power (kW): 2x160

SHREDDING UNIT
Number of screws: 2
Drum rpm: max.40
Drum length (mm): 2820
Drum diameter (mm): 610
Cutting elements: 134

WEIGHT (t)
Assembled unit: ~ 17.1

THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 100

4200

DRIVE
Power (kW): 1x160

SHREDDING UNIT
Number of screws: 2
Drum rpm:  10/28
Drum length (mm): 2820
Drum diameter (mm): 610
Cutting elements: 134

WEIGHT (t)
Assembled unit: ~ 17.7

THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 55

5200

DRIVE
Power (kW): 1x200

SHREDDING UNIT
Number of screws: 2
Drum rpm: 23/34
Drum length (mm): 2820
Drum diameter (mm): 610
Cutting elements: 134

WEIGHT (t)
Assembled unit: ~ 18.0

THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 80

6200

DRIVE
Power (kW): 1x280

SHREDDING UNIT
Number of screws: 2
Drum rpm:  29/44
Drum length (mm): 2820
Drum diameter (mm): 610
Cutting elements: 134

WEIGHT (t)
Assembled unit: ~ 18.2

THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 120

Machine type: Crambo 5200 direct

Application: Green waste

Throughput: 60 t/h

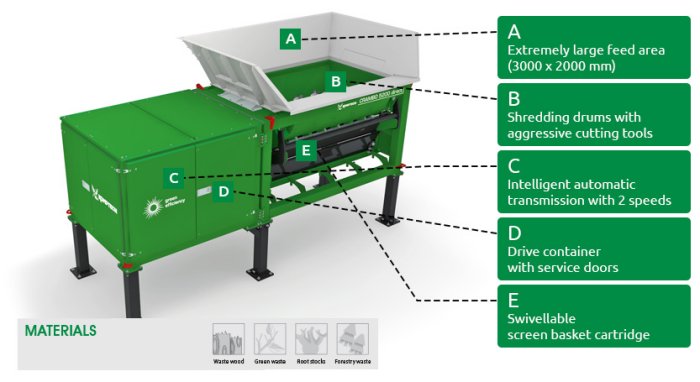

In the generously dimensioned shredding area, two 2820 mm long counter-rotating drums provide active feed. The teeth seize the material and press it in a cutting/splitting action against the cutting edge and screen baskets located underneath. Slow turning (rotation speeds up to 34 rpm) results in a lumpy shred initially.
