Komptech - Model Hurrikan -Stationary Windsifter System

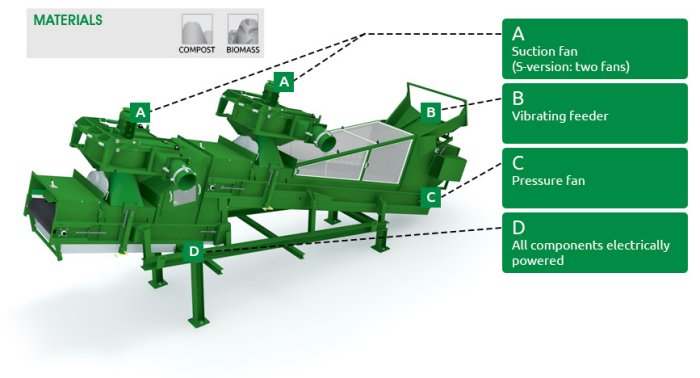

The stationary Hurrikan windsifter-system allows effective cleaning of over-sized screened particles. The unit is extremely compact for a windsifter and can be integrated easily into a system chain. The patented „pressure-suction“ principle is used to separate plastic with a high degree of selectivity. In the second step, the lightweight material is drawn off by a powerful suction blower. The suction performance is adjustable to material by variation of blower speed, blower distance and vent flaps. The quality of the recyclable oversized particles can be improved yet further by using magnet separation and a stone trap.
- More than 90 percent selectivity by precise adjustment of settings to material properties
- Powerful S-version with enlarged suction section (2 suction fans)
- Outstanding windsifting performance using pressure-suction in conjunction with vibration
- Simple integration into new or existing systems
DRIVE
Power (kW): 26
FEED
Filling width (mm): 1600
Width feed conveyor (mm): up to 1200
DIMENSIONS L x W x H: L x W x H (mm): 7300 x 2000 x 4200
Weight: ~ 4
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 40
HURRIKAN S
DRIVE
Power (kW): 44
FEED
Filling width (mm): 1600
Width feed conveyor (mm): up to 1200
DIMENSIONS L x W x H: L x W x H (mm): 9800 x 2460 x 4000
Weight: ~ 6.0
THROUGHPUT (dependent on material)
Throughput performance (m3/h): up to 40
Machine type: Hurrikan S
Appication: Screening residues from compost
Throughput: 55 m3/h
If the oversized fraction after screening is going to compost, noncompostables like plastic film need to be removed. In the first step, material is separated by a pressure fan. In the second step, the lightweight material is drawn off by a two powerful suction fans. The suction performance is adjustable by changing the fan speed, fan distance and vent flaps.
