Komptech - Model Multistar XXL2 -Electric 2-Fraction Star Screen

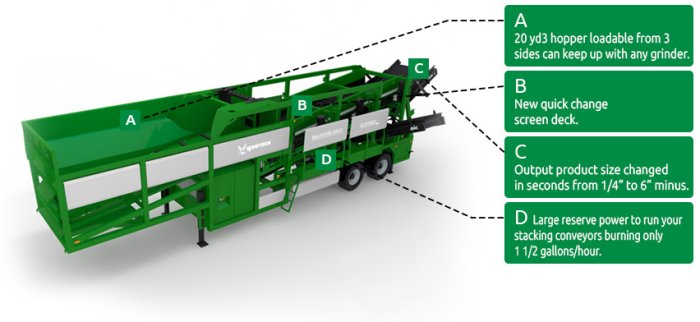

The Multistar XXL-2 is designed as a pure 2-fraction star screen and gives high performance, with unmatched throughput. The XXL-2 is purpose built to keep up with the high throughput of large grinders in the mulch market. This one step process increases output and lowers production costs. The Multistar XXL-2 will produce your bulk ready products faster, cleaner and cheaper.
DRIVE
Diesel generator (kVA): 60 | 80 (optional 80 | 107)
MATERIAL FEEDING - feed hopper
Hopper volume (m³): ~ 13 yd3 (optional 20) / ~ 10 m³ (optional 15)
Filling length (mm): 13‘1“ / 4000 mm
Filling height (mm): 10‘6“ / 3200 mm
SCREEN SEGMENTS
Coarse screen L x W (mm) / area (m²): 23‘ x 5‘3“ / 118 ft2 | 7000x1600 mm / 11,2 m²

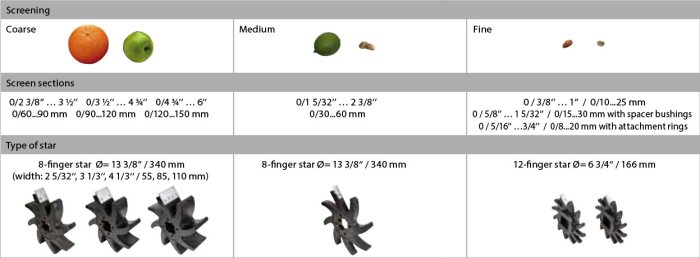

SCREEN SECTION (standard)
Oversize particle: > 5/8“...1 5/32“ | > 15.....30 mm
Undersize particle: 0 / 5/8“...1 5/32“ | 0 / 15.....30 mm
MATERIAL DISCHARGE
Oversize fraction: 11‘10“ (optional 15‘1“) 3600 mm (optional 4600)
Undersize fraction: 8‘10“ (optional 13‘1“) 2700 mm (optional 4000)

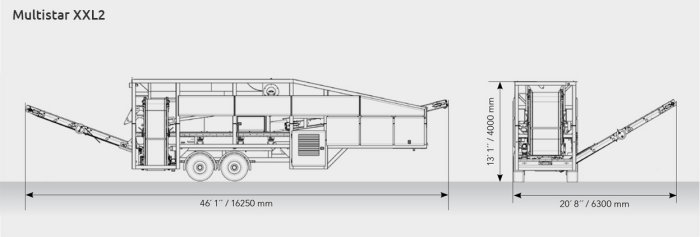

DIMENSIONS
Transport dimensions L x W x H (mm): 44‘11“ x 8‘4“ x 12‘10“ / 13700 x 2550 x 3900 mm
Working dimensions L x W x H (mm): 50‘10“ x 13‘11“ x 12‘10“ / 15500 x 4250 x 3900 mm
Weight (t): ~ 24.0 t.sh / ~ 22,0 t
THROUGHPUT (dependent on material)
Throughput performance (m3/h): to 650 yd3/h to 500 m3/h
OPTIONS
Different screen options for coarse and fine screen, magnetic drum, discharge belt for rolling pieces, windsifter, diesel generator (M-version) towing and chassis options, radio remote control, central lubrication and more
