Kontek ROKON - Reverse Osmosis Purification System
Purify And Recover Up To 90% Of Your Wastewater. Designed for ultra-efficiency, Kontek`s ROKON Reverse Osmosis Systems recover up to 90% of raw city water or recovered process feed water. Our highly efficient membranes and optional variable speed drives will minimize your facilities` energy requirements. Systems are controlled by PLC-driven operator interfaces, which display and archive all important system information on a user- friendly control panel. Premium instrumentation package offers industry-leading membrane protection. Every ROKON Reverse Osmosis System is mounted on a powder-coated or stainless-steel rugged frame designed to withstand harsh environmental conditions. Kontek only uses the highest quality pumps, membranes, and instrumentation, with proven performance and durability.
SYSTEM DESIGN
Use of performance projection computer modeling software leads to the lowest cost of ownership.
ROKON PRE-TREATMENT
Pre-treatment requirements are based upon the quality of source water. Typical pre-treatment steps include multi-media filtration, chlorine & organics removal, and chemical &/or brine softening. ROKON`S exceptionally low-fouling membranes and high-quality pre-treatment systems reduce cleaning and maintenance costs while extending your system`s life.
DEPENDABLE
Simply let your ROKON System run!
Our PLC interface will automatically alert you as soon as it needs operator attention -always protecting your system while keeping it running smoothly.
ROKON SYSTEMS REMOVE
Simply let your ROKON System run!
Our PLC interface will automatically alert you as soon as it needs operator attention -always protecting your system while keeping it running smoothly.
CIP SYSTEMS
Simply let your ROKON System run!
Our PLC interface will automatically alert you as soon as it needs operator attention -always protecting your system while keeping it running smoothly.
LOW-FOULING MEMBRANES
We use membranes lined with patented polyamide-urea barrier. The chemical composition of these membranes naturally reduces fouling rates, enhancing the reverse osmosis process.
- Standard designed flow rates from 5 to 300 GPM / skid
- Durable, vertical multi-stage 316 or 304 SS pump with a high efficiency TEFC motor
- All high-pressure piping is heavy wall 316 SS
- Adjustable reject recirculation
- Up to 90% water recovery
- Stainless steel filter housing with 1.0-micron filter cartridges
- ASME rated and stamped pressure vessels
- Long membrane life span, reducing system downtime and maintenance costs
- PLC-controlled with colour touch screen HMI controls for real-time data collection and maximum flexibility
- Digital or analog high-quality flow, conductivity and pressure sensors allow for the display of % recovery, % rejection and trans-membrane pressure
- Systems meet UL, ULC and CE standards
- Skidded construction with either powder coated mild steel or stainless-steel frame equipped with foot pads
- Wet factory acceptance testing assures quality and performance

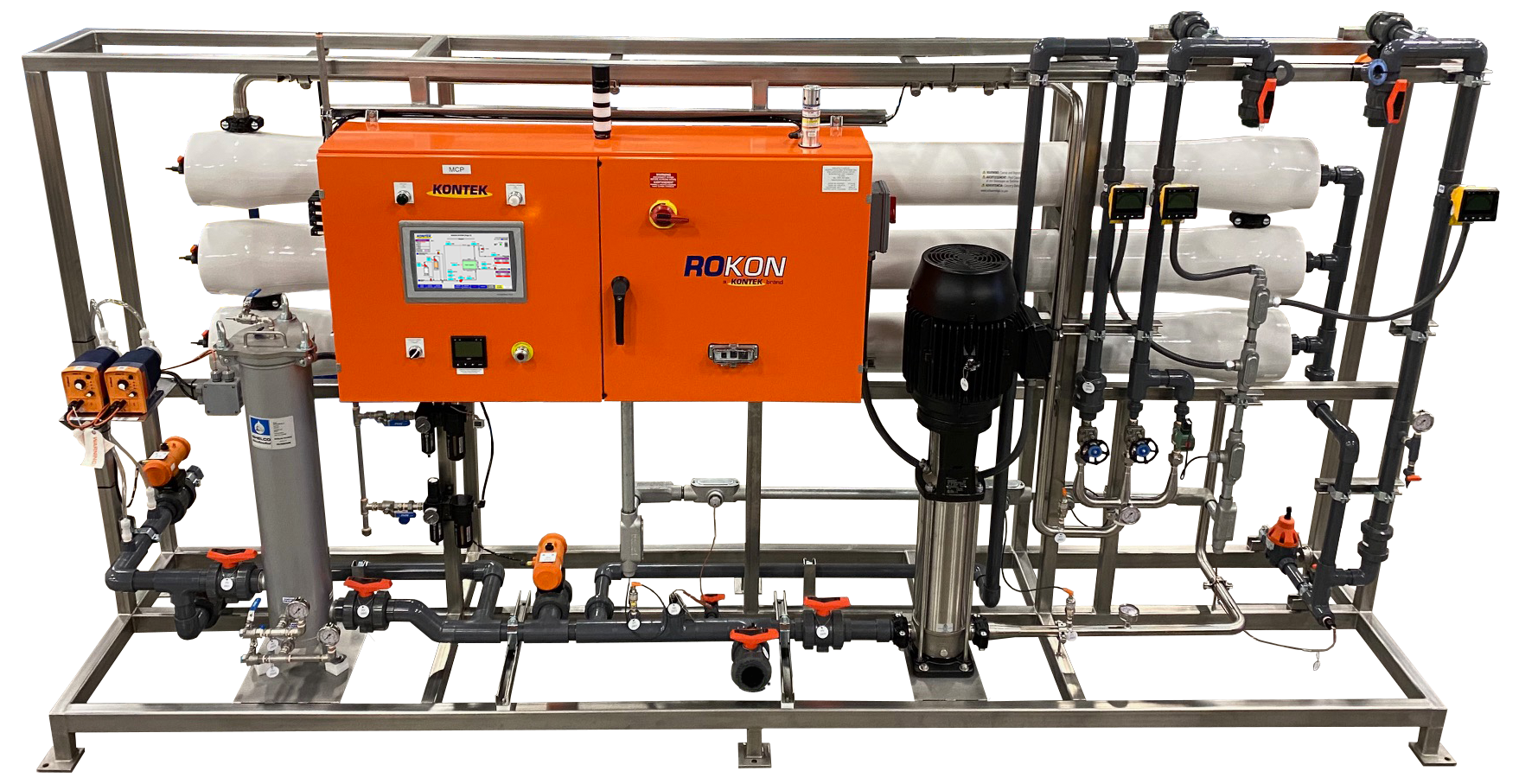

ROKON System: Complete with carbon and greensand filtration, pre-treatment and an automated, heated CIP
Our customers’ membranes typically last up to a decade – or longer. ROKON technology maximizes membrane life and productivity by preventing fouling, which can damage your membranes, require frequent cleaning and cause system downtime.
CYCLIC ION EXCHANGE RESIN
Cost-effectively soften process water by regenerating the resin for free, with a Reverse Osmosis reject stream
