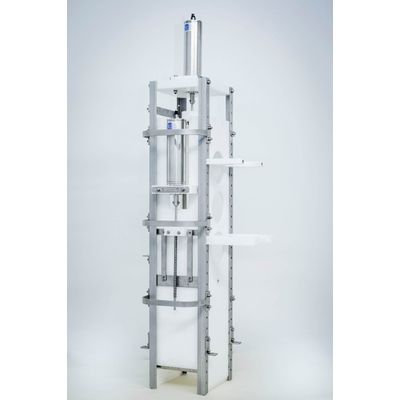

KUM - Model K/MT 110 -Benthic Chamber
A Seabed Penetrator / Extractor for in-Situ Experiments. The direct analysis of seabed sediment can be a critical part of any marine investigation. However, the collection and sealing of the sediment, while also allowing for experiments to be conducted in-situ is a very difficult task. To address this challenge, K.U.M. designed the Benthic Chamber, which is capable of penetrating the seabed and collecting a sediment probe sample along with 20-litres of the seawater column directly above it.
The Benthic Chamber allows for simultaneous experiments and analysis of the seabed-water contact to be completed via the on-board Syringe Sampler (K/MT 115) and various chamber sensors.
Deployment of the Benthic Chamber to depths of up to 6,000m is carried out using the K.U.M. Lander. The chamber consists of two components, the rack and the chamber with blind. The rack moves the chamber towards the seabed and allows penetration to begin; once drilling is complete the blind closes and embraces the sediment probe in the chamber.
At this point in-situ measurements can take place through the injection of desired elements such as oxygen or CO2 via the onboard Syringe Sampler. Changes can be measured in-situ via the onboard sensors in the chamber (e.g. CO2, O2, CH4) at different time intervals. During this time, the remaining syringes can collect samples from the chamber at any time.
When the operation is concluded, the rack moves the chamber up once more and the sample is safely stored.
- Seabed / water contact sampler and analyser
- Platform for in-situ sample analysis in response to injected solutions
- Programmable with ease
- Allows stacking of multiple syringe samples for
dedicated timeline - Various sensors can be added (e.g.CO2, oxygen, CH4)
- Injection of active fluid for controlled redox
measurements via onboard syringe sampler - Stirrer to ensure even distribution within the probe
BENTHIC CHAMBER
- Drives : Standard drive for deep sea applicationWeight – 5.4 kgVoltage – Up to 12V
- Material : Chamber & blind – POMDrives – Stainless steel or titanium Rack – Stainless steel (1.4571)
- Operational depth: Up to 6000 m
- Standard dimensions : Height – 1200 mm, Width – 250 mm, Depth – 220 mm
- Chamber dimensions : Height – 1070 mm, Width – 220 mm, Depth – 220 mm
- Weight: 28 kg (without drives)
