Kurasep - Nitrogen Gas Generator

CMS is a mainstream adsorbent for Pressure Swing Adsorption (PSA) system Nitrogen gas generator. There is a differential diffusion rate system based on the fact that the oxygen molecule is smaller than the nitrogen molecule.

CMS adsorbs oxygen gas, carbon dioxide gas, moisture and so on in compressed air in a short period of time and compressed nitrogen gas is available at the outlet. When the pressure decreases to the atmospheric or vacuum level, CMS which has adsorbed oxygen gas and others easily desorbs them and is regenerated.

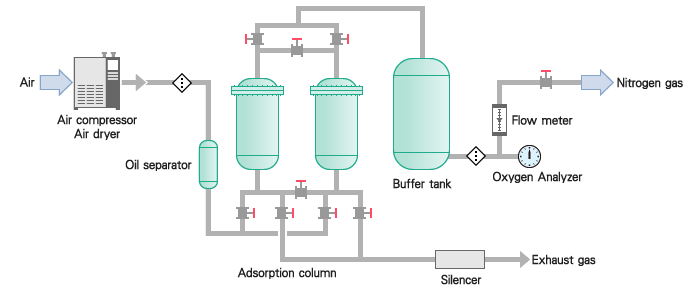

When the above two operations are done alternately between
two adsorption columns, nitrogen gas can be available continuously from the air.

• Allowing you to privately generate nitrogen gas with cost reduction
• Full automatic, labor saving operation
• Simplified system for easy maintenance
• Not subject to High Pressure Gas Safety Act
• Availability of a wide variety of models for many applications
  (=availability of suitable one for your requirements)
• Unique turndown system (optional) for saving even more energy.
• The on-truck type is a model enabling spot, emergency demands for nitrogen gas supply
