Kynar - Kynar PVDF Jet Aerator For Improved Wear Resistance

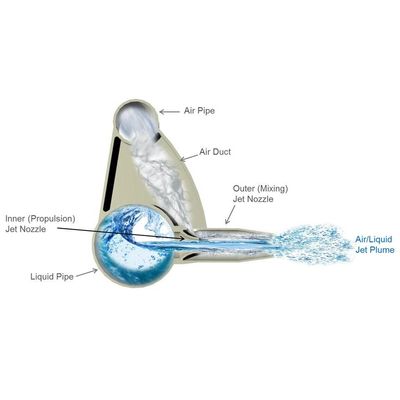

Ten years ago, KLa Systems was presented with the challenge of finding a more wear-resistant material for our jet aeration nozzles. The inner nozzle (see above) is the liquid propulsion nozzle of the jet aerator and continuously sees high volumes of motive liquid flow at velocities ranging from 33-46 ft/s. Traditionally, these inner jet nozzles were made from the same FRP material as the outer jet with the industry accepted corrosion/abrasion liner made up of C-Glass/Nexus and Silicon Carbide impregnated into the vinylester resin. For many years this material had held up in most industrial and municipal bioprocesses with no adverse deterioration or wear.
