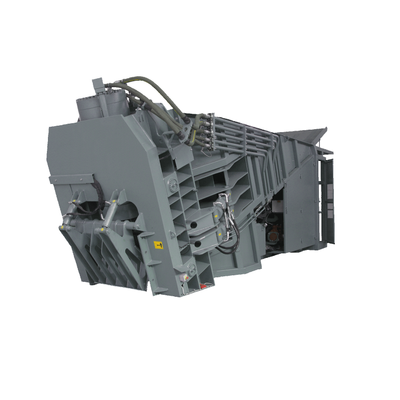

Kyoto - Model CI 3000 -Inclined Shear
The “CI” series of inclined shears are ideal machines for industries and for recycling medium and heavy waste. Thanks to the large loading tank, it is the ideal machine for handling long materials such as beams, rails, pipes, sheet metal and scrap in general without length limitations.
The CI 3000 thanks to its compact layout, is installed at ground level on economical foundations thus facilitating maintenance thanks also to the side enclosures that can be opened completely.
The high productivity (up to 40 ton/h depending on the model) due to continuous charging and inclined plane, which thanks to gravity and vibrations of the plane itself, it brings the scrap to the cutting head where it is blocked by the lateral and vertical pressers for subsequent shearing, making it a fundamental equipment for industry and recycling.
The machine is driven by the latest generation of electric motors. The control of all movements and automatic cycles is entrusted to a PLC, which allows variations and corrections of presses and cutting lengths even during the working cycle. The choice of high quality hydraulic and electrical components make it an extremely robust and reliable equipment.
- Designed for cutting medium heavy scrap
- Continuous charging operation
- Choice of cutting length
- Extremely reliable
- Easy to use
- Powered by electric motors
- Controlled by PLC
- Total length: 13500 mm
- Overall width: 2600 mm
- Overall height: 5000 mm
- Casing length: 10500 mm
- Approximate weight: 95.000 Kg
