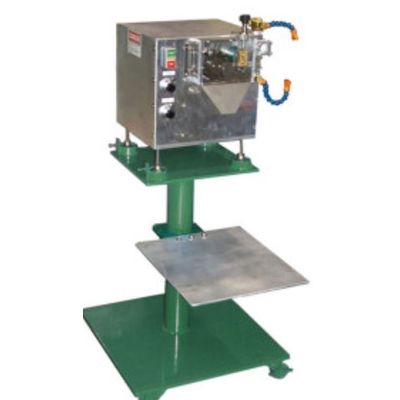

BPM - Model BT 25 -Lab Series Pelletizers - Laboratory-Scale Precision Pelletizing System
The BT 25 Lab Series Pelletizers from Bay Plastics Machinery are compact and versatile machines that offer the capability of production-scale pelletizers, tailored for laboratory settings. Despite their small footprint, these pelletizers can handle a diverse range of materials, including rubber-like strands and glass-reinforced thermoplastic resins. They feature tool-free access to the cutting chamber for easy cleaning and maintenance. The BT 25 can process up to four 1/8” diameter strands of olefins or two 1/8” diameter strands of engineered resins, with standard pelletizing speeds from 20 to 78 feet per minute. For specialized applications, high-speed and low-speed options are available. The device boasts independent drives for feedroll and cutter, allowing for quick adjustments to pellet size.
The Bench Top 25 Lab Series of pelletizers from Bay Plastics Machinery has the features of a production-scale pelletizer in a size suitable for laboratory use. Although the BT 25 pelletizer is small in size, the range of strands it can pelletize is anything but small. The BT 25 Pelletizer can pelletize anything from rubber-like strands to glass-reinforced thermoplastic resins.
The BT 25 Lab Series Pelletizer has tool-free access to the cutting chamber, which makes it easy access for cleaning and maintenance. The BT 25 Pelletizer can manage up to four 1/8” diameter strands of olefins, or two 1/8” diameter strands of engineered resins. The BT25 lab pelletizer has a standard line pelletizing speed range of 20 to 78 feet per minute. For more demanding applications, we offer a High Speed option, which achieve a line speed of 40 to 156 FPM. And for applications requiring lower line speed, a Low Speed version which runs from 4 to 40 FPM is also available.
Equipped with independent drives for the feedroll and cutter, this machine can change pellet sizes with the turn of a knob. With so many features packed in a compact pelletizer, this unit will compliment any lab facility.
Optional Features: Carbide-tipped rotor, water bath, pelletizer support stand, support stand for water bath, and a custom water recirculation systems, compressed – air knife.
A Uni-Base option is a complete pelletizing system perfectly suited for small runs. With the Uni-Base design, the pelletizer is mounted on a base consisting of a 6 foot-long water bath and air knife. The air knife comes equipped with flow control, a guard, and a drip tray.
- Working Width : 1.0 inch : 25mm
- Strand Rating (1) : 2-4 : 2-4
- Std. Strand Velocity : 20-78 ft/min : 6-24 m/min
- Std. Rate per Strand (2) : 25 lb/hr : 11 kg/hr
- Optional Strand Velocity : 40-155 ft/min : 12-48 m/min
- Opt. Rate per Strand (2) : 50 lb/hr : 22 kg/hr
- Motor Size (Rotor) : 3/4 HP : 0.55 kW
- Motor Size (Feedroll) : 1/17 HP : 0.04 kW
- Max. Rotor Speed : 800 RPM
- Voltage : 110 volts Single Phase
- Type of Drives : DC
- Amp Draw : 12.9 Amp
- Std. No. of cutting edges Rotor : 12
- No. of cutting edges Bed Knife : 8
- Opt. No. of cutting edges Rotor : 6
- Automated start-up
- Re-threading of broken strands
- Dust-free pellets
- Low operating noise level
- Compact and space saving design
- 1 – 130 Strands
- 2,000 – 8,000 Lb/Hr
- Strands are Carried Down the Slide to the Belt Water is Drop off at the Belt
- Heat in Material Flashes Water Off the Strands.
- Excess Water is Removed by Vacuum through the Belt and Positive Pressure above the Belt
- Designed for Specific Applications/Materials
