DAM - Laboratory E-Motor Test Bench
FromDAM GROUP

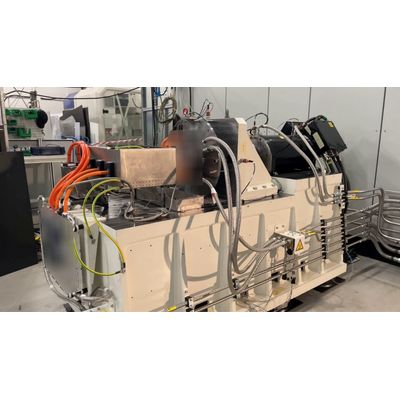

DAM Group produces laboratory and end of line test benches and measurement instruments for hybrid or electric powertrains. This e-motor test bench performs the functional test of the e-motor and collects data on quality, reliability, and performance.
Most popular related searches
laboratory bench test
laboratory bench testing
laboratory testing
flow monitoring
flow testing
laboratory benching
laboratory bench
temperature monitoring
It is composed of 3 parts :
- control room
- testing part with main testbed
- technical room
- Power/voltage/current for motor up to 450kW and its inverter
- Torque/speed: with high accuracy
- Durability test
- Cooling power 62kW
- Flexible test definition
- Motor is tested in direct drive configuration
- Power up to 450kW
- Max speed : up to 20 000 rpm
- Torque : up to 600Nm
- Cooling measurement : flow, temperature, pressure
- Durability test
- Real Time data displaying
- High degree of flexibility for prototypes test
- Create new Test Sequence
- Create script and new automation sequence
- Get full data (different Speed)
- Tools for analysis
- DUT control Unit : CAN
