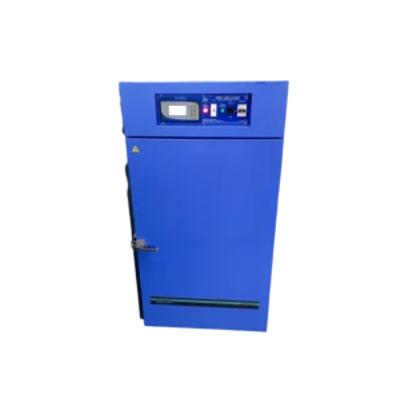

Ferrotek - Model FE-171-C -Laboratory Oven Machine

The insulation Gap between the walls is at least 100 mm. and high temperature Ceramic blanket are used as insulation material. The air circulation motor is mounted on side/top of the equipment and the blower is driven by belt pulley attachment. It protects the motor from Heat build upend damage due to it. The temperature variation is around +/- 1% of the set value on higher range. The power supply will be 220/230V AC +- 10% 50 Hz or 440V 3 phase for bigger size as per requirement.
