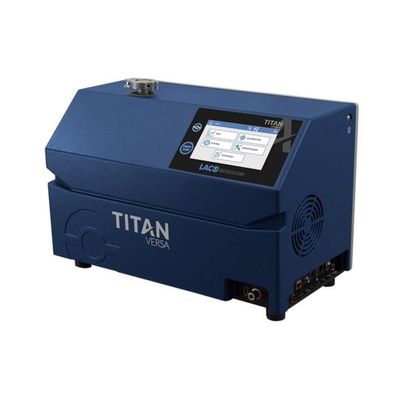

LACO - Model TITAN VERSA C -Incredibly Powerful and Versatile Helium Leak Detector
The TITAN VERSA C (Compact) with external, user-supplied pump, is an incredibly powerful and versatile helium leak detector based on an innovative and proven core technology. It is lightweight, mobile, and flexible. It is most commonly mounted on a maintenance cart or integrated into a production leak test system. Typical applications include production system integration, service cart mounted for maintenance environments, and field service applications.
Founded on a core leak detector module, our configurable design—together with its high sensitivity and pumping capacity—gives you the flexibility and performance your application requires. Whether you need a service and maintenance tool or a production leak testing instrument, the TITAN VERSA is the versatile solution to your leak detection needs.
The TITAN VERSA Warranty, Service, and Support package is the best in the industry.
- Warranty
- Leak detector – 2 years
- Calibrated leak standard – lifetime
- Service
- Global network of Authorized Factory Service facilities
- Full range of service options including self-service maintenance kits and comprehensive service contracts
- Preventive Maintenance (PM) Service Agreements – simple, flexible and tailored to your needs
- 15% discount on PM Service contracts at time of purchase
- 72-hour uptime guarantee
- 24/7 product support
- Free calibrated leak standard exchange
- Discounted labor rates for other services when in a service agreement
MULTIPLE PURCHASE & RENTAL OPTIONS
- Standard purchase
- 2-year lease-to-own
- Annual rental*
- Short-term rental*
* Save 50% on rentals when combined with PM or repair services
TECHNICAL SUPPORT
Unmatched technical support from engineers and technicians with over 50 years of combined experience brings you industry-leading support, including:
- Expert test fixture design
- Leak test process consulting
- System integration support
- Training seminars
- Leak detector repair service
- Pump: None
- Evacuation Valve: Standard flow
- Vent Valve: Standard flow
- Supply Voltage: 100-120 V~
- Plug Type: N. America
- CONFIGURE your custom TITAN VERSA
- Primary Pump: : None
- Pumping Speed Capacity: : N/A
- Dimensions (W x H x D): : 559 x 404 x 305 mm | 22.0 x 15.9 x 12.0 in
- Weight : 25 kg | 55 lbs
- Operating Temp – Vacuum Method : 0 – 45 °C | 32 – 113 °F
- Operating Temp – Sniffing Method : 0 – 45 °C | 32 – 113 °F
- Electrical Supply (50/60 Hz) : 90 – 250 V~
- Electrical Power (Max) : 350 W
- Detectable Gases : Helium 4 | Helium 3 | Hydrogen
- Min. Detectable Leak Rate –
- Vacuum Method (Helium) : 5 x 10-12 mbar L/sec | atm cc/sec
- Min. Detectable Leak Rate –
- Vacuum Method (Sniffing) : 5 x 10-9 mbar L/sec | atm cc/sec
- Max. Inlet Pressure – Vacuum Test Modes : GROSS – 25 mbar | FINE – 5 mbar | ULTRA – 0.5 mbar
- (GROSS – 19 Torr | FINE – 4 Torr | ULTRA – 0.4 Torr)
- Test Methods : Vacuum (includes AutoTest) | Sniffing
- Helium Pumping Speed : 2.5 L/sec (ULTRA mode)
- Protection Category : IP 20
- Inlet Flange : DN 25 ISO-KF
- Start-up Time : ≤ 3 minutes
- Accessory Interfaces : USB port | Barcode | Accessory 1&2 | Wireless remote control | Wired remote screen
- Communication Options : Serial ports: RS-232 | RS-485 | Ethernet
- I/O Options : Remote I/O | Local I/O
