Lamor - Rapid Boom Recovery Unit

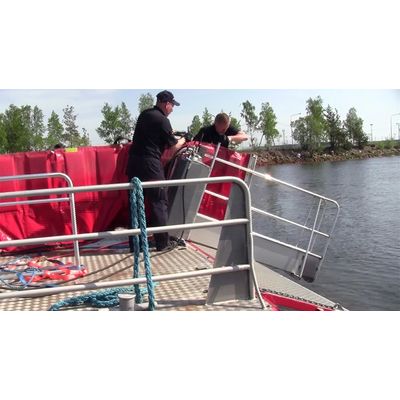

The Rapid Boom Recovery Unit is an innovative ancillary device designed to recover foam filled oil boom (FOB) at a high recovery rate . The recovery unit utilizes a hydraulic driven recovery system and pressurized guiding rails to recover deployed boom onto a vessel or a work platform. The rate of recovery is adjusted to the speed of the operation at hand by a hydraulic potentiometer allowing the boom to be quickly recovered onto the work platform or methodically straight onto a storage rack.
Water is drained from the boom as it is recovered. Two hydraulic motors work in unison to recover the boom through three directional rollers onto the work platform and are controlled by a one-directional lever allowing quick stop and go of the boom during recovery operations. The recovery unit is built to increase the efficiency of FOB recovery operations while maintaining safety. The system can be installed on any work platform as a removable system and its compact design means minimal storage space.
- Compact design, light weight
- Robust and seawater resistant
- Rapid FOB boom recovery
- Easy to use controls
- Stop and go recovery
- Drains water from boom
- Easy installation
- Compact storage
- Length: 1200 mm / 47 in
- Width: 700 mm / 28 in
- Height: 1600 mm / 63 in
- Weight: 163 kg / 360 lbs
- Hydraulic flow: 5-10 l/min / 1.3-2.6 gmp
- Hydraulic pressure: 70 bar / 1015 psi
