Easy Bolt - Landfill Gas Well Flanges
The Easy Bolt clamping force far exceeds the requirements for sealing 6" and 8" landfill gas well flanges. In most cases, no more than four bolts are needed to provide the required force in these applications.
Most popular related searches
landfill
site remediation
remediation site
landfill mining
mining site
landfill industry
landfill site
well casing

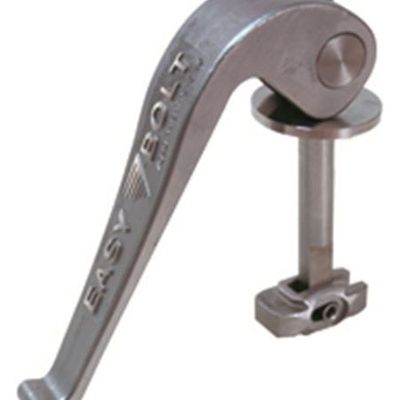

The Easy Bolt™ provides the function of conventional nuts and bolt sets, but uses a simple lever action instead of wrenches. The Easy Bolt fits through the flange bolt holes and is tightened by simply pushing the cam lever down. Easy Bolts are constructed of high quality stainless steels, with an investment cast lever.
- No Tools Required
- Over-Centered Cam Design
- Self-Centering Swivel
- Stainless Steel Construction (dissimilar)
- Faster and easier to use
- Self-Locking
- Automatically swivels into position
- No corrosion or galling
- Maximum working load: 1,000 pounds.
- Min/Max Flange Hole Size in. (mm): 7/8 (22) diameter hole
- Bolt Clamping Range in. (mm): 2.12-4.19 (54-106)
- Materials of Construction: Stainless Steel
- Landfill
- Mining
- Industrial Sites
- Oil Refineries and Petrochemical
- DOD / DOE Sites
- Remediation Sites
