Tarmac - Large Drying Systems for Sand, Aggregates and Minerals

SHARE

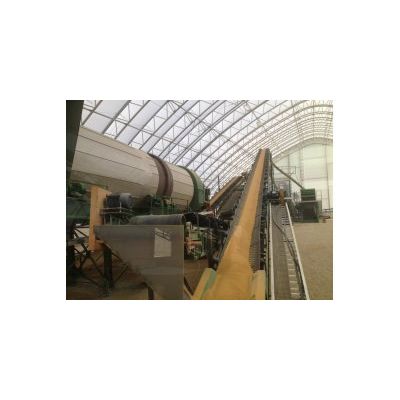

Tarmac International designs and builds Sand Drying Plant Equipment based on rotary convection dryers. Both Frac Sand and general Construction Sand can be processed. Feed systems, co-current and counter current dryers, primary cyclones, baghouses, and control systems are built. Consulting Services, individual components, complete plants, used equipment, and turn-key installations are available.

Most popular related searches
cyclone baghouse
baghouse
baghouse control
baghouse system
cyclone system
  • Longer combustion flights for better burner flame development
  • Moving slinger belt to adjust gas temperature to baghouse
  • Trunnion or chain drive
  • Insulation available to reduce dryer fuel costsv

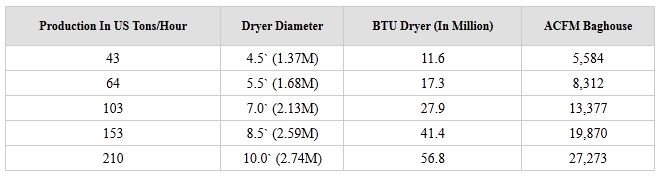

Assumes 6% moisture by total weight, 350 Ft/Min Gas Velocity, 220 F Material Discharge Temperature, 100 lb/ft3, 500’ Elevation. Lower moisture levels will increase production, higher moistures will reduce production.
