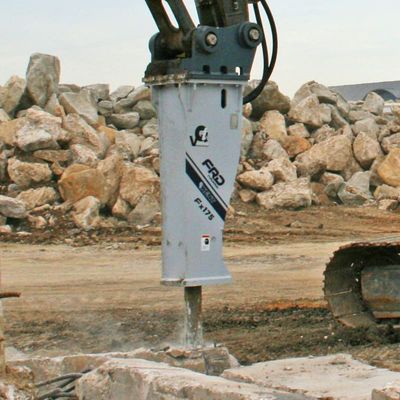

Furukawa - Model Fx175 QTV -Large Series Hydraulic Rock Breaker

The Fx175 Qtv offers improved durability, with features that include a square, mono-block body design for superior strength. The elimination of thru-bolts also reduces maintenance and eliminates failure. A patent pending dust prevention system incorporates grooves to trap contaminates on the upstroke and expel them on the piston downstroke, while a cushion ring acts as a secondary trap. This improves the life of the piston, bushings and working steel.

Operators appreciate performance features that include a new valve design to reduce hydraulic fluid temperatures. A redesigned piston enhances surface contact to working steel, while a larger bushing surface keeps it aligned for greater impact. A replaceable cylinder liner increases tool life and reduces repair downtime.

The Fx175 Qtv is also designed to accommodate automatic lubrication systems for quick daily maintenance. Excavators equipped with quick couplers can take advantage of our Floating Top-Mount Boss mounting system. This incorporates standard mounting hardware while meeting “OEM Pin Centers” for specific carrier mounting eliminating the need for specific OEM top caps.

All hammers come complete with our exclusive Pro-Pak for ease of installation. The Pro-Pak includes hose whips, mounting hardware, standard working steel and tool kit with operating manual at no additional charge.

• Designed without thru-bolts.
• Increased hydraulic flow range for use on a wider range of carriers.
• Mono-block design eliminates a separate cylinder, front-head and thru-bolts.
• Improved Dust Intake Prevention system increases reliability.
• Replaceable cylinder liner with concentric porting keeps piston aligned for maximum impact performance.
• Improved valve design reduces hydraulic fluid temperature which increases performance.
• Square body design for superior strength.
• 3-point sealing system prevents internal contamination.
• Redesigned piston increases surface contact to working steel.
• Improved dampening system keeps the breaker properly secure in cradle to reduce wear.
• Qtv cradle for improved protection, sound suppression and dampening.
• Increased and improved lubrication to critical components.
• Longer thrust bushing for increased internal alignment also insures direct impact with piston.
• Includes two-year warranty with registration.
