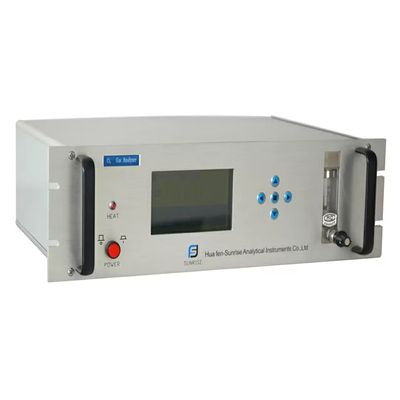

Huafen Sunrise - Model SR-2030 -Laser Oxygen Gas Analyzer
There is no or slight influence on result caused by disturbing gases such as CO2, CO, H2S, NOx, N2, Ar, H2, CH4, CL2, SO2, NH3, HCI, H2O. The sensor has a long life which can be used for more than four years with normal operation. Air pressure and flow rate have little or no influence on the test results. Small gas consumption, minimum 100ml/min. The response time is less than 15s. High accuracy and resolution is 0.001. LCD with wide range of temperature displays the composition, concentration and trend chart of the detected gas. Automatic zero correction, multi-level password protection and no loss of data when power-off. Measuring range can be set arbitrarily. 10.It has RS232/485 interface and can be connected with DCS.
- Range: 0-100%
- Scale interval: 0.001
- Repeatability: Cv≤1%FS
- Zero drift: ≤±1%FS/7D
- Span drift: ≤±1%FS/7D
- Response time: T90 < 15S
- Sample gas flow rate: 500mL/min
- Preheating time: No need to be preheated
- Signal output: 4-20mA, RS232/485
- Alarm: High-limit alarm, low-limit alarm
- Temperature and humidity: 0-45°C, 20-80%RH
- Power supply: 100-240VAC, 50/60Hz , adjustable to local frequency
It is suitable for continuous detection of gas concentration in chemical industry, fertilizer industry, metallurgy industry, air separation industry, areas with environmental quality and emission of pollutants.
