Spectrex - Model PC-2200 -Laser Particle Counter
Identifies Particle Quantity and Size from 0.5µm to 100µm diameter. It operates with both flowing and in-situ Liquids.The new `slim-line` PC-2200 functions exactly like the PC-2000 but has improved electronics and weighs only 6 lbs, less than half that of the PC-2000.
- Easy do-it-Yourself Calibration
- SuperCount Software
- Compact & Portable
- Quickly Counts & Sizes
- No Cross-contamination of Flow Lines
- Eliminates Sample Flushing

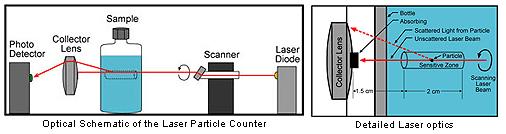

Utilizing the principle of "near angle light scatter", a revolving laser beam passes through the walls of a glass container of a flow-thru cell. When it is directed through a central "sensitive zone" the PC-2200 not only counts the particles in suspension, but tabulates their size as well. The analog signals generated by the light pulses are routed to a computer and digitized.
Spectrex provides three sealed calibration standards with each unit. Each standard contains a precise number of NIST traceable polystyrene microspheres of known size and are suspended in clean diluent. Calibration is efficient and can be completed within 10 minutes.
- Water Treatment Plants
- University Laboratories
- Pharmaceutical Manufacturers
- Oil Refineries and On-site drilling
- Bottling & Beverage Operations
- Oceanographic Studies
- Hydraulic Fluids and Oil QC
- Liquid Chromatography Solvent QC
- Cooling Tower and Waste Water Filter Efficiency
- Particle Agglomeration Studies
- Silts and Sediment Sizing
- Particle Settling Characteristics
- Corrosive Chemical and Solvent Sizing
- Vial and Ampule Inspection
- De-ionized Water and Acid Testing
- Cell Counting
Developed by Spectrex, the custom interfacing electronics and proprietary software provide an easy means of analyzing and saving data generated by the PC-2200. SuperCount provides instant sizing information and histogram of size distribution in addition to indicating:
- Absolute Counts
- Mean Size
- Mass Distribution
- Percentage Distribution
- Standard Deviation
- Total Suspended Solids
The dilution factor can be automatically computed to give absolute count for liquids as dense as sludge! SuperCount also is loaded with a special bonus program for hydraulic fluids and Phi classifications.
- Opacity Meter - provides an instantaneous measurement of the sample`s opacity to correlate with computer calculations
- Small Vial Attachment - for use with 5ml vials or ampules
- Flow-Thru Cell - Spectrex stocks various sizes of flow-thru cells and can manufacture cells to customer specifications. Cells are also available for testing at high pressure and temperatures.
- Water Filtration System Features
- Removes particles down to 0.25um (microns)
- Equipped with long reach faucet for easy fill
- Kwik-Change™ cartridges are the fastest changeable cartridges on the market (30-second filter changeout process)
- 1/4-turn pivot filter head makes for ease of accessibility and filter change, reduces the amount of tube connections for greater reliability and reduces leak potential
- Cartridges connect to and disconnect from the unit by a simple 1/4-turn
- Space saving design intsalls under sink or in limited space
- Double Seal O-Ring cartridges ensure system integrity
- No storage tank needed
- Requires only normal line pressure to operate
- Dispenses a continuous supply of water
- Requires minimal maintenance and will provide years of clean, safe, great-tasting water .
- Size: 4.75 " x 14 " x 4.5 " (height with Light Tight Cover is 5 ")
- Typical bottle size: 15-60 mm inside diameter
- Bottle Material: transparent, scratch-free glass
- Weight: 6 lb.
- Power: 115v 60Hz (230v optional)
- Detectable Particle Size: from 0.5µm - 100µm
