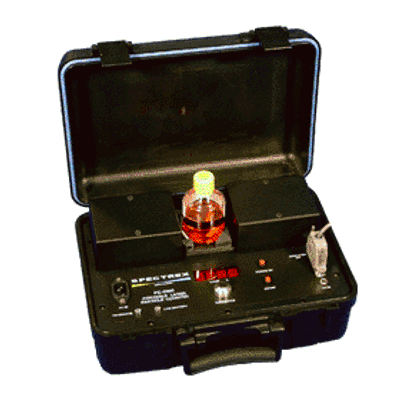

Identifies Particle Quantity and Size from 0.5µm to 100µm diameter. It operates with both flowing and in-situ Liquids.The new `slim-line` PC-2200 functions exactly like the PC-2000 but has improved electronics and weighs only 6 lbs, less than half that of the PC-2000.

Measures Particle Quantity and Size from 0.5µm to 100µm diameter. AC or Battery operated, for both Insitu and Flowing Liquids, oil and water.

The HPC600 handheld laser particle counter is the latest innovation in the demanding application of airborne particle counting. It is useful in counting particles in ultra-clean environment by its single particle counting ability. The instrument consists of a handheld set with a main base unit that allows users to conduct the sampling with a handheld set while easily expanding to multiple functionalities with a base unit. These extended functions include data downloading, data real-time printing, software upgrading, battery charging, and remote sampling. In addition to USB and RS232 interfaces, the RJ45 interface allows users to conduct the remote sampling away from the sampling location.

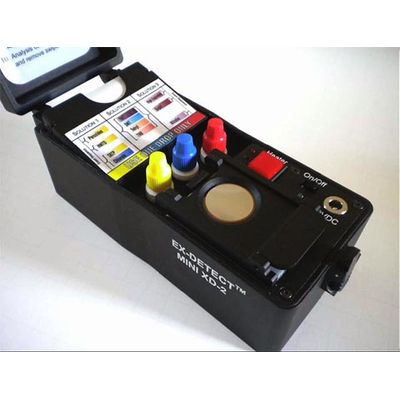

The MINI XD-2 is an enhanced version of the battle tested XD-2 Explosives Detector. The Ex-Detect™ Mini XD-2 is an extremely rugged, reliable, trace-level explosives detector designed for all weather use. It detects the entire suite of both military and home-made explosives, as well as gun propellants, using a specific sequence of proprietary solutions in combination with a unique heating and cooling cycle over time. This procedure causes "colorless" explosives to become colored dyes on the white swipe material. In addition, 3 optional independent spot test solutions are available for detecting Perchlorate, Urea, and pH.

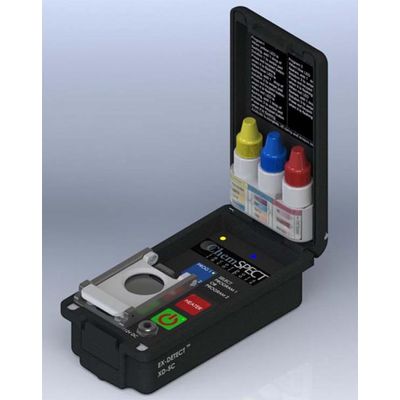

The XD-5 is an extremely rugged, reliable, trace-level explosives detector designed for all weather use detects the entire suite of both military and home-made explosives. The XD-5 is o-ring sealed and water tight, operates as a semi automated detector, is not susceptible to humidity or environmental backgrounds and does not require calibration. The time required for the operator to obtain trace-level for low and high explosives, HME and other related compounds is approximately 30 seconds. There are no clear-down issues between samples. The detection limits for explosive residues are in the low nanogram levels and the detection range is very large (up to milligrams levels or more) without loss in sensitivity or carry-over to subsequent samples.

Battery, pump, electronics and detector tube all in one compact, rugged module, eliminates cumbersome Tygon tubing and charcoal tube holder clipped to lapel. Light (4 oz.) and compact, with flame retardant case. Special clip ensures unit stays firmly in pocket. Flow range: 50-350 ml/min. (5-350 ml/min. with optional, $40, low flow orifice). Full flow regulation. A constant voltage is applied to pump as battery voltage drops. Low power consumption. A low cost (< $2.00) alkaline battery is sufficient for a 40-hour work week. Easily replaceable 9-volt battery. NiCad, zinc-carbon and alkaline types are interchangeable. Adaptable - accepts 6mm diameter (single and double) and 8mm diameter charcoal tubes, other absorber tubes and Draeger & Kitigawa colorimetric tubes. Intrinsically safe. Current-limiting resistor in battery circuit prevents danger of short-circuit spark.

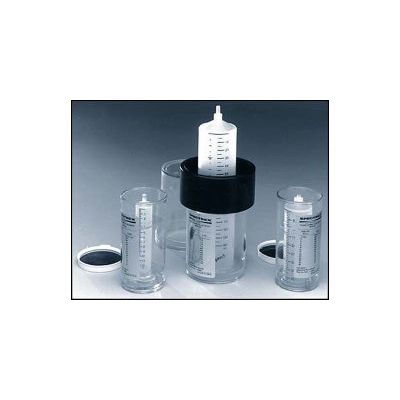

These unique units are: Portable (Weights: 1.5 oz; 2 oz; 8 oz.), Self-contained, Leakproof, All plastic, Provide instant soap bubble movement by depressing central cylinder 1/4`. Flow is established by timing bubble and reading off flow from a special `time` chart attached to the flow meter barrel.

Includes Audio Alarm, Battery operation and Provision for External Alarm and Data Logger. For paint shops, printers, dry cleaners, woodworkers, vehicle repair facilities, chemical production areas and wherever indoor air quality monitoring is required: the Model C-21 gas sensor helps you comply with the new VOC air quality regulations for hydrocarbon gases and solvent vapors.

Standard Features, 100% Oil-free, Maintenance free, Trouble-free operation in any position, Contamination-free pumping or air or gas, Dynamically balanced for low vibration, Minimum noise

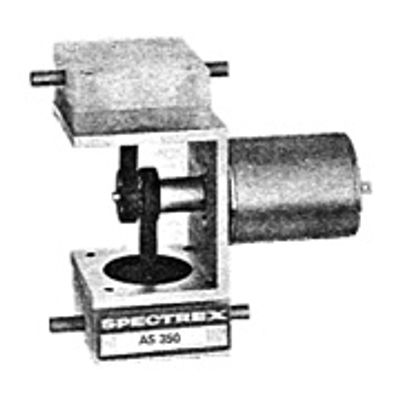

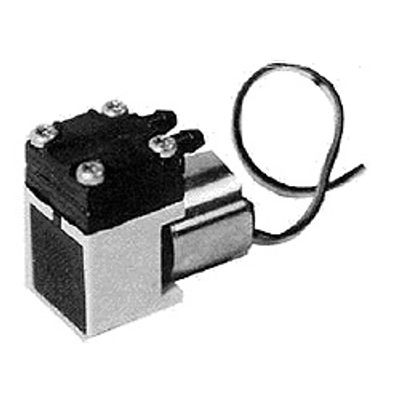

The Spectrex 300 series gas pumps use a high quality "tape-deck" type D.C. motor and provide extremely low power, high efficiency pumping for gases. They use a special, formed "viton" diaphragm and highly stable mylar valves. A specially designed mechanism provides variable stroke which can be set with extreme precision. As the motor can take from 3 to 15 volts D.C., the combination of correct stroke and voltage produce a highly efficient system.
