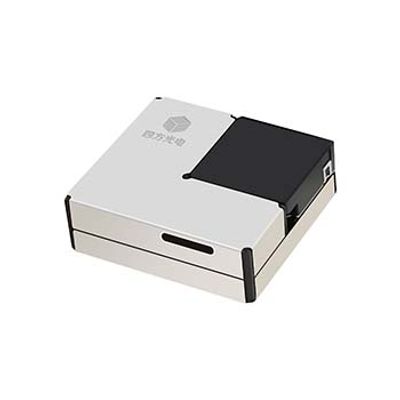

Wuhan Cubic - Model PM2012SE-A/PM2012SE-B -Laser Particle Sensor

• Smallest & ultra-thin
• High accuracy
• High sensitive and quick response(≤8s)
• Signal output optional: UART, I²C
• Compact structure, light weight, easy to install

• Measurement particle: 0.3μm~10μm
• Measurement range: 0~5000μg/m³
• Measurement accuracy for PM2.5/PM1.0: 0~100μg/m³, ±10μg/m³ ;101~500μg/m³, ±10% reading
• Measurement accuracy for PM10: 0~100μg/m³, ±25μg/m³;101~500μg/m³, ±25% reading
• Timeto first reading: ≤8s
• Response time: 1s
• Working temperature: -10℃~50℃
• Working humidity: 0~95%RH(non-condensing)
• Power supply: DC 5V±0.1V
• Ripple wave: <50mV
• Working current: <100mA(working); <200μA (standby)
• Signal output: UART_TTL/, I²C (3.3V/5V)
• Dimensions: W38*H35*D12 (mm)

Air Purifier

Air pollution contributes to millions of premature deaths throughout the world each year. In China, rapid industrialization has wrought intense levels of air pollution that poses a serious threat.

Fresh Air System

With the rapidurbanization process, the problem of energy consumption has become more andmore serious.Among them, building energy consumption is one of the largestenergy consumptions.

Fresh Air System Controller

For the purpose of achieving energy saving and comfort environment, and with wide spread of internet+ and IoT, especially CO2 and particle sensors development, HVAC system is developing very fast.

Air Quality Monitor

With the improvement of people`s living standards, more and more people begin to pay attention to the air quality of their living environment.
