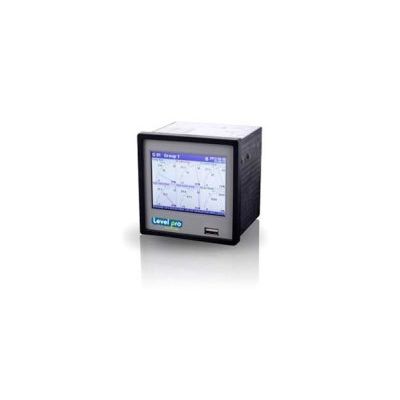

Levelpro - Model ITC 650 -Multichannel Process Display with Datalogger
Configuration of max. 60 channels via inputs, outputs, controller, profiles. connection of channels via mathematical / logical functions. 8 integrated PD / PI / PID controller
Most popular related searches
Datalogger
- logging of max. 60 channels
- 2 selectable measuring rates (max. 10Hz)
- extensive triggering functions
- internal memory 1,5 GB
- data transfer via USB stick / Ethernet
Productcharacteristics
- front panel housing 96 x 96 mm
- graphic 3,5″ TFT monitor, touchscreen
- 3 free fittable slots, 22 different input /output modules
- transducer supply 24 VDC
- communication interface:
3 x RS-485, 1 x RS-232, (Modbus RTU)
2 x USB-Host-Port,
Ethernet (Modbus TCP, Java Applets)
