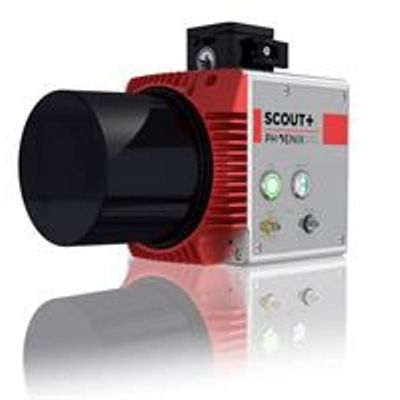

Phoenix Scout - Model 8 -LiDAR System
The Phoenix Scout-8 is the newest addition to the SCOUT Series, taking cost-effective LiDAR scanning to new heights with a 60-meter recommended AGL and up to 3 returns. Customize your SCOUT-8 with photogrammetry, hyperspectral, thermal imaging and additional options.
Most popular related searches
UHF radio modem
construction site monitoring
LiDAR scanning
radio modem
site monitoring
LiDAR
online training
thermal imaging
live data feed
LiDAR system
Build the SCOUT system you need to meet the growing demands of your clients in varying industries, from mining to agriculture and construction to forestry.
- Free basic online training included; PLUS complete Acquisition/Post-Processing/Pilot/Certification training also available (fees may apply)
- Free Phoenix Software Suite w/unlimited license; plus NovAtel & Terrasolid options also available (fee may apply)
- Optional Upgrades: aerial systems, dual antenna GPS, IMU upgrade options, integrated UHF radio modem, optional ground vehicle & UAV mounts/accessories, service plans and much more
- Live/Remote Data Feed: View and analyze data in real time or transmit live data to remote viewers via 4G connection
Primary Applications
- Light Vegetation
- Construction Site Monitoring
- General Mapping
- Open Pit Mining
- Forestry
Navigation System
- Integrated NavBox
- Constellation Support: GPS, GLONASS
- Support alignment: Kinematic, Dual-Antenna
- Operation Modes: Real-time, Post-processing optional
- Accuracy Position: 1cm + 1ppm RMS horizontal
Platform Specs
- Overall Dimensions, Sensor: 18 x 11.6 x 11.6cm
- Operating Voltage: 24 V
- Power Consumption: ~18 W
- Weight: 2.35 kg / 5.2 lbs.
- Operating Temperature: – 20˚ – +60˚ C
Flexibility in sensing and mounting options is a key benefit of this Phoenix system. The SCOUT-8 is designed to fly on UAVs, including the DJI M600 Pro, and can also be adapted for vehicle and backpack configurations.
- 8x Lasers
- 905nm Laser Properties: Class 1 (eye safe)
- 100mm Absolute Accuracy: RMSE @ 50 m Range
- 1.0/150m Range Min/Max
- 420k points Scan Rate
- 3x Returns/Echoes
- 20°v/360°h degrees Field of View
