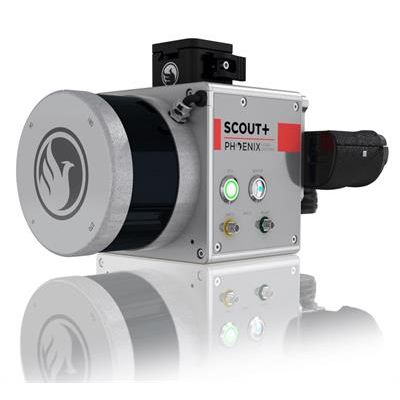

Phoenix Scout - Model 16 -LiDAR System
The Phoenix Scout-16 is an excellent entry-level, lightweight system with a 40 meter recommended AGL. A strong fit or smaller scan areas and teams on a budget, the Scout-16 also features options for photogrammetry, hyperspectral, thermal imaging, and more.. Phoenix LiDAR Systems and AP Equipment Financing have partnered to provide you with the most comprehensive financing programs for your LiDAR mapping needs. Restrictions may apply.
Build the SCOUT system you need to meet the growing demands of your clients in varying industries, from mining to agriculture and construction to forestry.
- Free basic online training included; PLUS complete Acquisition/Post-Processing/Pilot/Certification training also available (fees may apply)
- Free Phoenix Software Suite w/unlimited license; plus NovAtel & Terrasolid options also available (fee may apply)
- Optional Upgrades: aerial systems, dual antenna GPS, IMU upgrade options, integrated UHF radio modem, optional ground vehicle & UAV mounts/accessories, service plans and much more
- Live/Remote Data Feed: View and analyze data in real time or transmit live data to remote viewers via 4G connection
Primary Applications
- Light Vegetation
- Construction Site Monitoring
- General Mapping
- Open Pit Mining
- Forestry
Navigation System
- Integrated NavBox
- Constellation Support: GPS, GLONASS
- Support alignment: Static, Kinematic, Dual-Antenna
- Operation Modes: Real-time, Post-processing optional
- Accuracy Position: 1cm + 1ppm RMS horizontal
- PP Attitude Heading RMS Error: 0.019 / 0.074°
Platform Specs
- Overall Dimensions, Sensor: 16 x 11.6 x 11.6 cm
- Operating Voltage: 12-28 V
- Power Consumption: ~40 W
- Weight: 1.9 kg / 4.18 lbs.
- Operating Temperature: – 10˚ – 40˚ C
Primary Applications
- Light Vegetation
- Construction Site Monitoring
- General Mapping
- Open Pit Mining
- Forestry
Flexibility in sensing and mounting options is a key benefit of this Phoenix system. The SCOUT-16 is designed to fly on UAVs, including the DJI M600 Pro, and can also be adapted for vehicle and backpack configurations.
- 16x Lasers
- 905nm Laser Properties: Class 1 (eye safe)
- 55mm Absolute Accuracy: RMSE @ 40 m Range
- 1.0/150m Range Min/Max
- 300k points Scan Rate
- 2x Returns/Echoes
- 30°v/360°h degrees Field of View
