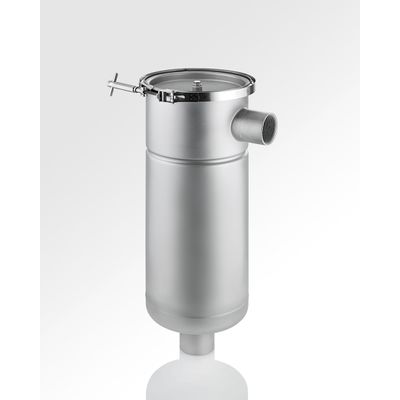

SFT - Model EL -Light Stainless Steel Bag Filter
The light stainless steel design with a side intake principle. The special design feature is the light stainless steel design with side intake principle, which prevents the suspension running on or overflowing when the housing cover is open. The V-clamp enables the cover to be opened and closed easily. It is installed so that it is self-supporting, using a base frame or wall attachment clips. The low-priced EL variant can only be delivered in the standard version.
Bag filters comprise three components: the filter housing, the pressure absorption basket and the filter bag. Filtration is carried out from inside to outside. The fluid to be filtered (suspension) enters the filter via the inlet, flows through the filter bag that is reinforced by the pressure absorption basket and exits through the floor outlet. A displacer can be used to reduce the residual contamination quantity. The solids that are in the bag can be disposed of easily, as the bag retains only a small amount of residual fluid thanks to its low tare volume.
Bag filter systems are user-friendly, versatile, cost-saving, robust and constructed to a high quality. The inner housing is made easier to clean thanks to the smooth design that eliminates dead space. No special tools are required to open the bag filters. This makes cleaning and changing the filter bag easier. We also offer a wide range of ring filter bags and accessories.
- Type: EL
- Bag size: 1, 2, 10, 20 (see Ring filter bags)
- Maximum operating data (bar): 6, 6, 9, 9
- Maximum throughput (m³/h): 20, 40, 6, 12
- Material: Stainless steel 1.4571
- Connection: Size 1 and 2: 2" threads – DN50 (M)
- Size 10: 1" threads– DN25 (M) or 1½" threads – DN40 (M)
- Size 20: 1½" threads – DN40 (M)
