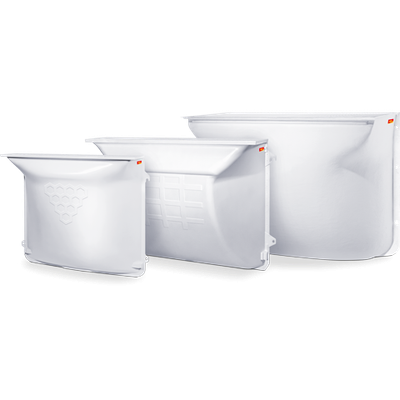

MEA - Model Meamultinorm -Light Wells
With several different sizes, three depths (40, 60 or 70 cm) and four grating designs made from hot-dip galvanised steel, the GRP light wells in the classic MEAMULTINORM range can be adapted to any building requirements.
- One-piece light well
- Available in three depths: MEAMULTINORM with a depth of 40 cm; MEAMULTINORM XL with a depth of 60 cm; MEAMULTINORM XXL with a depth of 70 cm
- Walk-on or car passable
- Four grating models made from hot-dip galvanised steel: 30/30 mesh; 30/10 mesh, expanded metal; 30/10 mesh (car passable)
- Easy installation
-
Watertight Installation
Watertight installation without thermal bridges is possible when the MEAMULTINORM 3-in-1 is combined with our AQUA fastening set. The special sealant-cum-adhesive ensures a permanently pressure-tight bond between the concrete wall and the light well body.
-
Dimensionally stable all-rounder
- Lightweight GRP light well body enables one-person installation
- Easy installation means less time and more safety
- Sturdy and reliable design for new or refurbished buildings
- Reinforced version is particularly adapted for difficult soil conditions
- Car-passable, heavy-duty grating enables loading up to 9.0 kN
- Installation without thermal bridges when used with MEAFIX insulation panel
- Watertight installation with AQUA fastening set
- Three depths available – for more light and air in the basement
- Weather resistant and easy to clean
The MEAMULTINORM range is rounded off with an extensive array of accessories.
-
MEAMULTINORM 3-in-1
With four decades of expertise and experience in GRP, MEA combines all the benefits of the three MEAMULTINORM light well types, proven in millions of applications:
- Universal light well
- Reinforced light well
- Watertight light well
The MEAMULTINORM 3-in-1 GRP light well is available with a depth of 40 or 60 cm (see diagrams and size charts below). With its uniform accessories and drainage connection, the MEAMULTINORM 3-in-1 provides reduced complexity and greater flexibility on the construction site. The continuous connection to the wall enables permanently watertight installation.
-
Quick, easy and reliable installation
MEAMULTINORM light wells combine functionality with resilience and durability. The geometry of the GRP light well body results in exceptional stability and resistance – both to the weather and to chemical substances. Architects, site managers and developers can trust in these products for absolute quality consistency.
-
Guaranteed by the market leader
MEAMULTINORM light wells combine functionality with resilience and durability. The geometry of the GRP light well body results in exceptional stability and resistance – both to the weather and to chemical substances. Architects, site managers and developers can trust in these products for absolute quality consistency.
