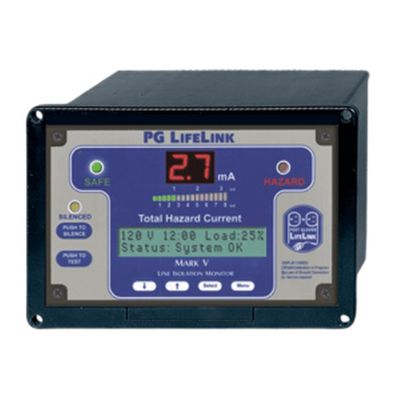

PG LifeLink - Model Mark V LIM -Line Isolation Monitor
The digital Mark V LIM (Line Isolation Monitor) was designed in accordance with NFPA 99 Healthcare Facility Code requirements to offer the best functionality and newest technology for our users. Created with the user in mind, the Mark V LIM offers an on-board status digital display and event logging and communication capability. The prominent LCD display instantly communicates important information such as line voltage, THC range and system status indication. The intuitive user interface menu provides convenient access to view alarm and event logs as well as configuration of user settings. Users can also scroll through past alarm and event logs using the convenient front mounted keys.
LCD display (user selectable) and LIM Connect™ is also available in Spanish with a Spanish language overlay.
Optional features can be added to display system overload and transformer temperature status with alarm notification available. The Mark V LIM can be networked with PG LifeLink’s LIM Connect™ remote management system and also is compatible with most Building Management Systems (BMS) via Ethernet and ModbusTCP.
- Continuous monitoring of system hazard current
- Self-testing/calibrating at user preferred schedule
- Onboard alarm and event logs with time and date stamp
- Optional system load monitor and transformer over-temperature alarm
- Optional LIM-Connect™ remote monitoring software interface
- Compatible with most Building Management Systems (BMS) via Ethernet and ModbusTCP
- User selectable Spanish language LCD display with optional Spanish overlay
- Operating voltage: 120 or 208/240 VAC (field selectable)
- Operating frequency: 50/60 Hz
- Nominal power consumption: 10 VA
- Accuracy: +5% of full scale (@ 5mA THC)
- THC Alarm Level (field selectable) at 4.8 or 1.9mA (Canadian standard)
- Monitor Hazard Current (MHC):
- 25 µA max. @ 120 V
- 50 µA max. @ 208/240 V
