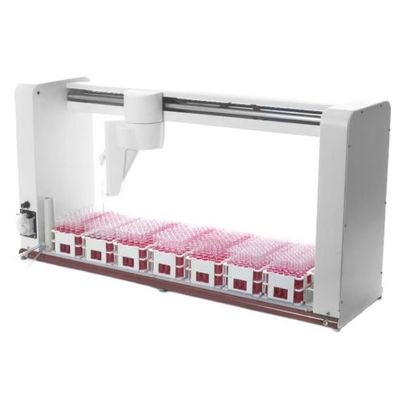

Aim Lab - Model AIM3600 -Liquid Autosampler
The highest capacity autosampler in Aim Lab’s range. Holds 7 sample racks and up to 2 standards racks. The AIM3600 is the highest capacity autosampler in Aim Lab’s range, Depending on the application, the wash station can be located in one of 4 different locations. The AIM3600’s narrow width allows it to be easily located in front of any host analyser and make it a very attractive option for high throughput applications.
Most popular related searches
Key Specifications
- Sample Capacity: Up to 630 samples and 22 standards
- Maximum vial height: 150mm
- Communication ports
- Host: 1 x RS232 or USB
- Aux:1 x RS232/RS485
- 4 x Relay contacts
- 8 x Digital Inputs
- Power supply: 110-240V, 50/60 Hz
- Dimensions:
- 100cm L x 29cm D x 51cm H
- 39″ L x 11″ D x 20″ H
- Weight: 22 kg (48lbs)
- Accessories
- Range of sample racks
- Range of standards racks
- Range of sample probes
- Range of wash pumps
- Range of wash stations
- Range of probe guides
- Protective cover
