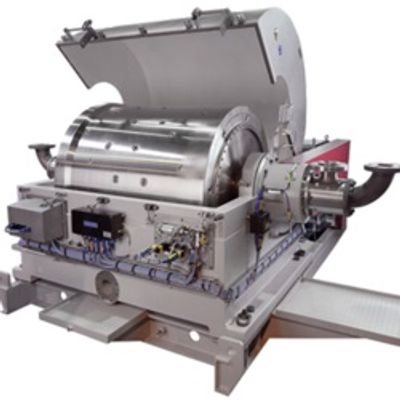

B&P Littleford - Model Podbielniak POD -Liquid Liquid Centrifugal Separator
B&P’s Podbielniak® Contactor (POD®) is a horizontal liquid liquid centrifugal extractor that processes liquids for accelerated solvent extraction. The two main functions of this machine are liquid liquid separation (must have specific gravity difference of .01 or greater) and the liquid-liquid extraction process through counter-current flow. This separation technology is often selected for temperature-sensitive operations, when trying to reduce footprint and solvent inventory from a tower, and when speed of process is important. The POD® has been in service for over 60 years and is still finding new applications where other liquid liquid separation or extraction processing equipment cannot perform. B&P Littleford is a horizontal centrifuge manufacturer with a very knowledgeable staff and top notch test facility to help trial the unit and identify/optimize your process.
Process Example 1 (solvent extraction): The separation of acetic acid from dilute solutions of water can be very costly if done by distillation alone. By running the material through the POD® first, the majority of the water is removed and the final product is realized by distilling a much smaller amount of water, which saves energy.
Process Example 2 (fermentation broth): A fermentation broth needs to be brought up to temperature for extraction but can only stand that temperature for a few minutes without degrading the active product. The POD® is the only extraction unit that will get the active product out and back down to temperature within a very short and consistent time frame.
- Lower operating rpm with widely spaced over-sized bearings leads to longer life of rotating parts.
- Hermetic flooded operation handles solvents and eliminates need for nitrogen purging in the separation.
- Critical leakage paths sealed by primary + secondary sealing components
- Allows any permutation of process liquids to provide safest handling.
- Special options for pharmaceutical applications
- Easy cleaning (CIP) provision for rotor elements using Asco tubes and Ferralium alloy liners.
- Dual bearing lubrication system: each bearing equipped w/ two drip-feed lubricators, one for normal operation and one for flush cleaning the bearings.
- All non-contact parts and attachments in SS 304 / SS 304 Cladding / Chrome
- Standard MOC is 316SS
- Various other options available for Pharma design, Acid treat design, Alloy20/Incoloy 825 design, Hastelloy design.
- Multiplies G-forces up to 3,000 times to accelerate separation or extraction processing
- Far exceeds single-G approaches such as gravity towers, mixer-settlers and other rotating or pulsating contactors.
- Sensitive enough to separate liquids with specific gravity differentials as low as 0.01
- Can separate emulsions due to high G force and low shear operation
- Compact hermetic design saves valuable floor space, and expensive liquid inventory in extraction.
- Separation and extraction process results achieved on laboratory-scale systems are easily scaled up to production-sized systems.
- Highly efficient and effective use of sensitive and hazardous process liquids and expensive solvents
