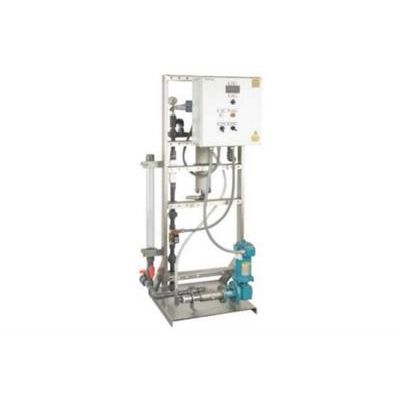

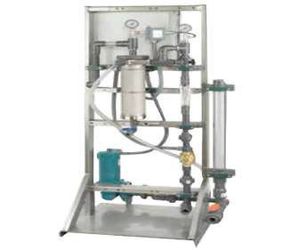

dynaBLEND - Model L4-P/L6-P -Liquid Polymer Blending System
The L4-P/L6-P Series dynaBLEND offers the same flow rates and features of the L4-PS/L6-PS Series with an upgrade to a progressing cavity pump. The progressing cavity pump provides increased life cycle.
Most popular related searches
dynaBLEND Model Example
L6-1800-6.0P fits applications with 681- 6814 lph (180-1800 gph) dilution water and 2.3-22.7 lph (0.6-6.0 gph) polymer.
Water Supply Pressure:
Water supply must be able to provide the maximum flow rate at 2.41- 3.45 bar (35-50 psi) greater than the pressure at point of use.
Operating Pressure:
6.89 bar (100 psi)
Weight:
Series L4-P: 114 kg (250 lbs)
Series L6-P: 125 kg (275 lbs)
Power Requirements:
Single phase 115 VAC standard.
