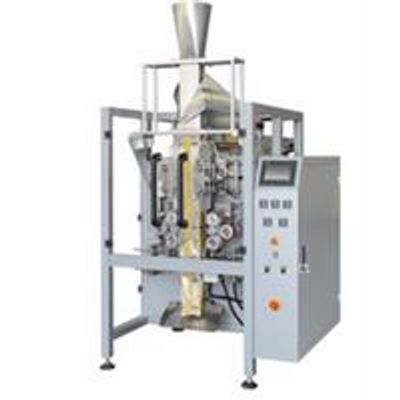

Echo - Model EC-520Y -Liquid Vertical Filling and Sealing Machine
Low cost high gain, high speed and efficiency. Famous brand PLC control system, large touch screen, convenient to operate. Film drawing down system and horizontal sealing controlled by servo motor. Minimize the loss with complete automatic warn protection function. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting),counting, finished product delivery when it equips with feeding and measuring equipment. The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
- Famous brands for electrical components, guaranteeing high quality and stable running.
- Control system by PLC for high accuracy and adjusting range.
- Compatible with various filling systems.
- Suitable to package liquid materials, such as shampoo, facial cream,oil, sauce,jam, etc.
- Capacity 60bags/min
- Bag size (L)80-350 mm (W)100-250 mm
- Bag type Pillow type bag , standing-bevel bag ,punch bag
- Filling range 150-2000ml
- Film width Max 520 mm
- Film thickness 0.04 - 0.09 mm
- Air consumption 0.8Mpa 0.60m3/min
- Power supply 220V 3.4KW 50HZ
- Dimension (L)1560 x (W)1160 x (H)1530 mm
- Weight 480kg
