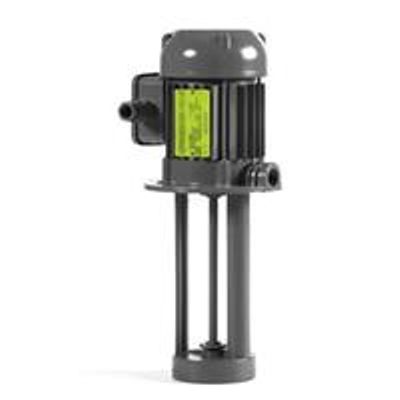

Sacemi - Model IMM 40-50 -Liquids Transferring Pump

SHARE

They are suitable for transferring liquids containing impurities up to 3 mm in size. Their hydraulic components: impeller, feed screw and pump body in PBT allow them to be used with water, emulsions and oily substances in general, with a viscosity not exceeding 21 cSt (3° Engel). The temperature of the liquid must not exceed 70°C.

Most popular related searches
glass processing system
liquid transfer pump
turning machine
air conditioning
glass processing
screw pump
hydraulic feed
drilling equipment
process air
impeller pump

They are commonly used on:

  • machine tools (milling and turning machines-drills)
  • glass processing machinery (TRI version)
  • air-conditioning systems

They are normally installed on a tank with a capacity which is proportional to their flow rate, about 2-3 cm from the bottom. It is important to make sure that the maximum liquid level in the tank is always 3-4 cm lower than the support flange. Should the liquid be particularly dirty, it is advisable to build a compartment tank in order to allow the sludge to deposit before it is sucked by the pump. For different uses, please consult our Technical Office.
